Prismatic Aluminum Shell Cell Sorting Machine 2000PCS/H AC220V
Prismatic Aluminum Shell Cell Sorting Machine 2000PCS/H AC220V Prismatic Aluminum Shell Cell Sorting Machine 2000PCS/H AC220V Prismatic Aluminum Shell Cell Sorting Machine 2000PCS/H AC220V Prismatic Aluminum Shell Cell Sorting Machine 2000PCS/H AC220V Prismatic Aluminum Shell Cell Sorting Machine 2000PCS/H AC220V Prismatic Aluminum Shell Cell Sorting Machine 2000PCS/H AC220V

Prismatic Aluminum Shell Cell Sorting Machine 2000PCS/H AC220V

Product Details:
Place of Origin: China
Brand Name: BT
Certification: ISO9001
Model Number: BT-FX11
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: USD 22000-27000 Set
Packaging Details: Wooden case
Delivery Time: 30 work days
Payment Terms: L/C,T/T,Western Union,MoneyGram
Supply Ability: 30 set month
Contact Now
  • Detail Information
  • Product Description

Detail Information
Product Name: Prismatic Aluminum Shell Cell Sorting Machine Input Power: AC220V 50HZ 2KW
Usage: Prism Core Test Analyzer Air Pressure: 0.4-0.8Mpa,No Water, No Impurities
IR Tester: HK3560 Optional IR Tester: HIOKI3561/HIOKI3562/HK3561
Control Device: PLC Touch Screen Control Cell Range: L50-200MM W15-50MM H60-200MM
Productivity: About 2000PCS/H Voltage Setting: 0.00000V-6.0000V
Internal Resistance Setting: 000.00mΩ-999.99mΩ Channel: 9OK,1NG
Test Data: Store With U Disk Test Pin: DZ100-214A30G
Dimensions: L2070MM*W1120MM*H1710MM Weight: About 700KG
Highlight:

Battery Cell Sorting Machine AC220V

,

50HZ Battery Cell Sorting Machine

,

2KW Cell Sorting Machine

Product Description

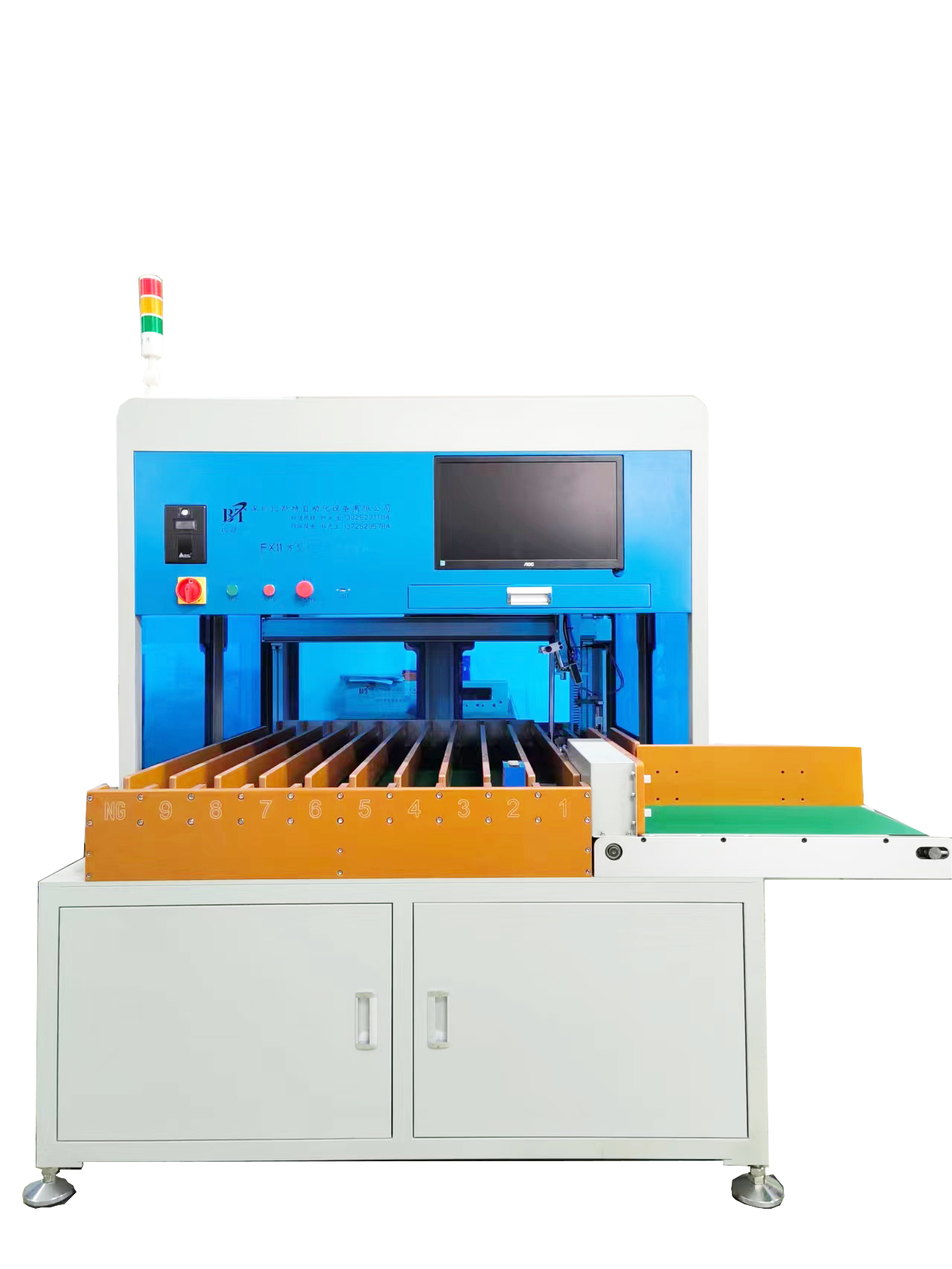

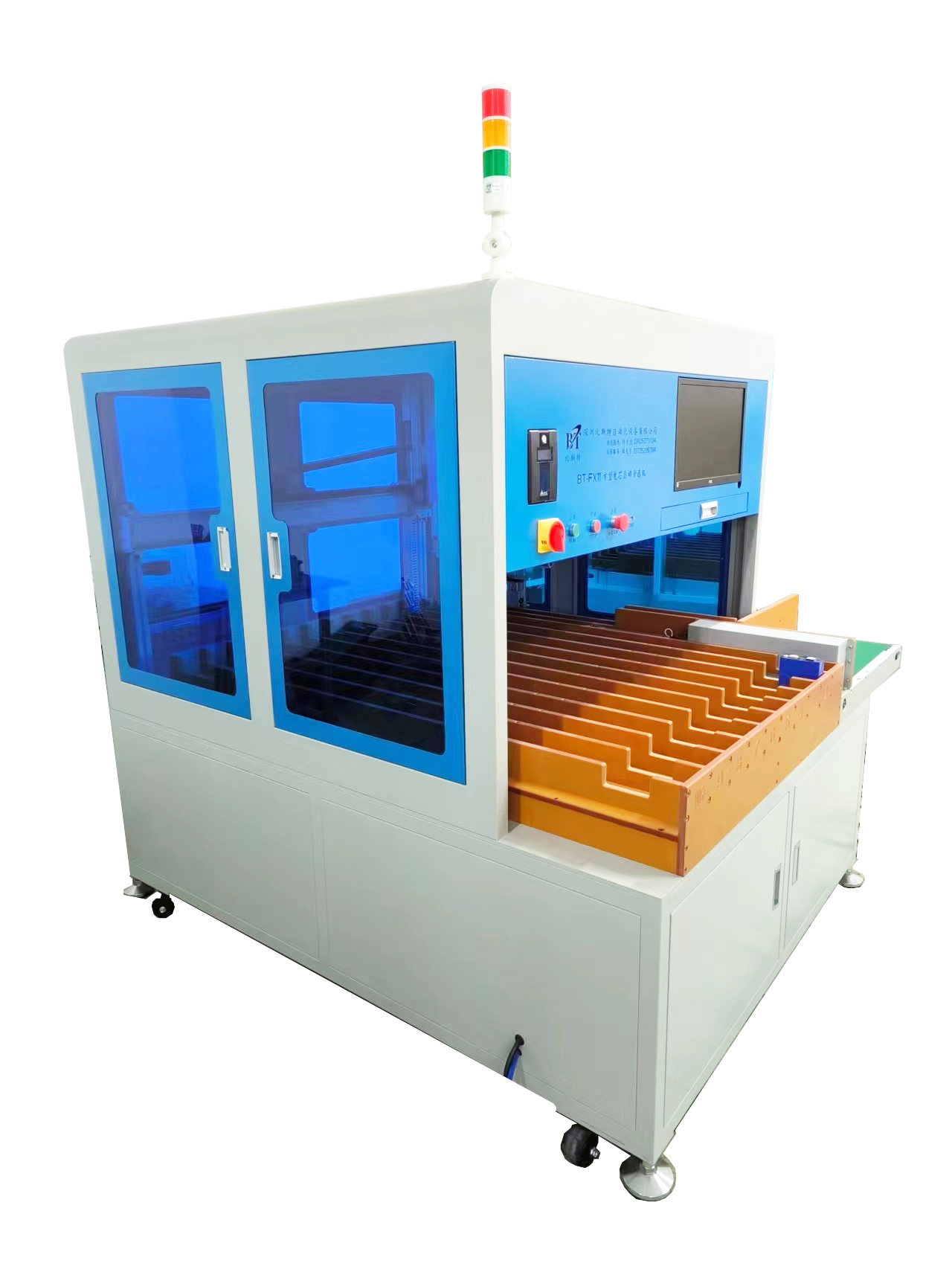

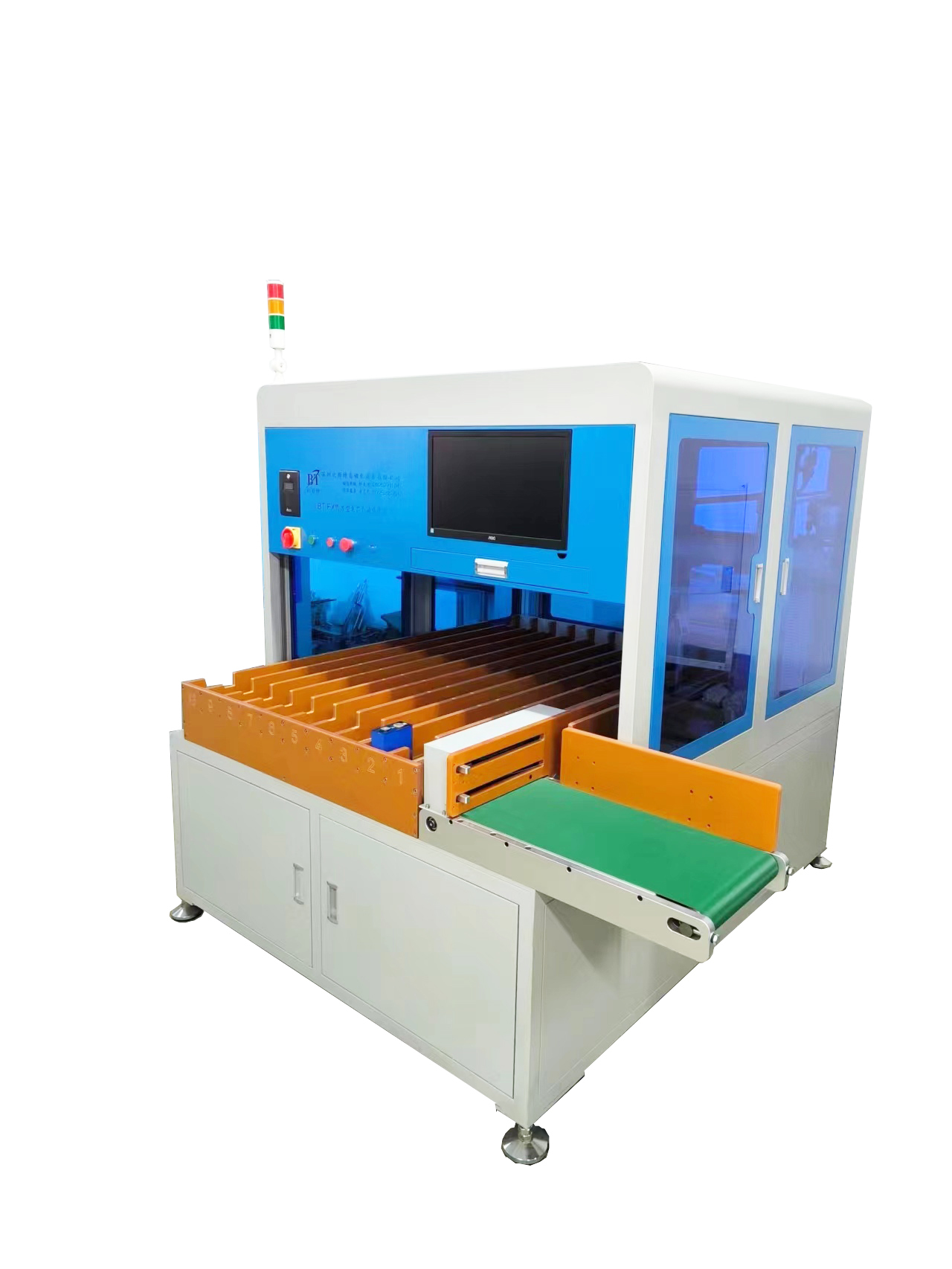

Prismatic Aluminum Shell Cell Automatic Sorting Machine
Main Function

The BT-FX11 prism aluminum shell core automatic divider machine tests voltage and internal resistance of square aluminum shell cores, automatically sorting them according to set voltage and internal resistance values.

Product Characteristics
  • Automatic production quantity collection displays current production efficiency
  • Test data storage via USB for transfer to computer
  • Optional distribution core dynamic tester reflects actual core quality and load performance
  • Simple equipment setup with intuitive operation
  • Customizable code scanning function (not included in standard model)
  • Servo motor-driven shift power with precise positioning
  • Manual core piling feeding with assembly line
  • Automatic hand feeding accommodates 30 thickness cores (30PCS)
  • Optional external computer connection for data upload
  • 7.5-inch touch screen control with 3-axis PLC programmer (computer version available)
  • Requires filtered air source (free of water and impurities)
  • 2-year equipment warranty (excluding vulnerable parts)
Technical Specifications
Product Name Prism aluminum shell cell sorting machine
Input Power AC220V 50HZ 2KW
Usage Prism core test Analyzer
Air Pressure 0.4-0.8Mpa, No water, no impurities
IR Tester HK3560
Optional IR Tester HIOKI3561/HIOKI3562/HK3561
Control Device PLC touch screen control
Run Power 750W Servo electric
Cell Range L50-200MM W15-50MM H60-200MM
Productivity About 2000PCS/H
Voltage Setting 0.00000V-6.0000V
Internal Resistance Setting 000.00mΩ-999.99mΩ
Certification ISO9001

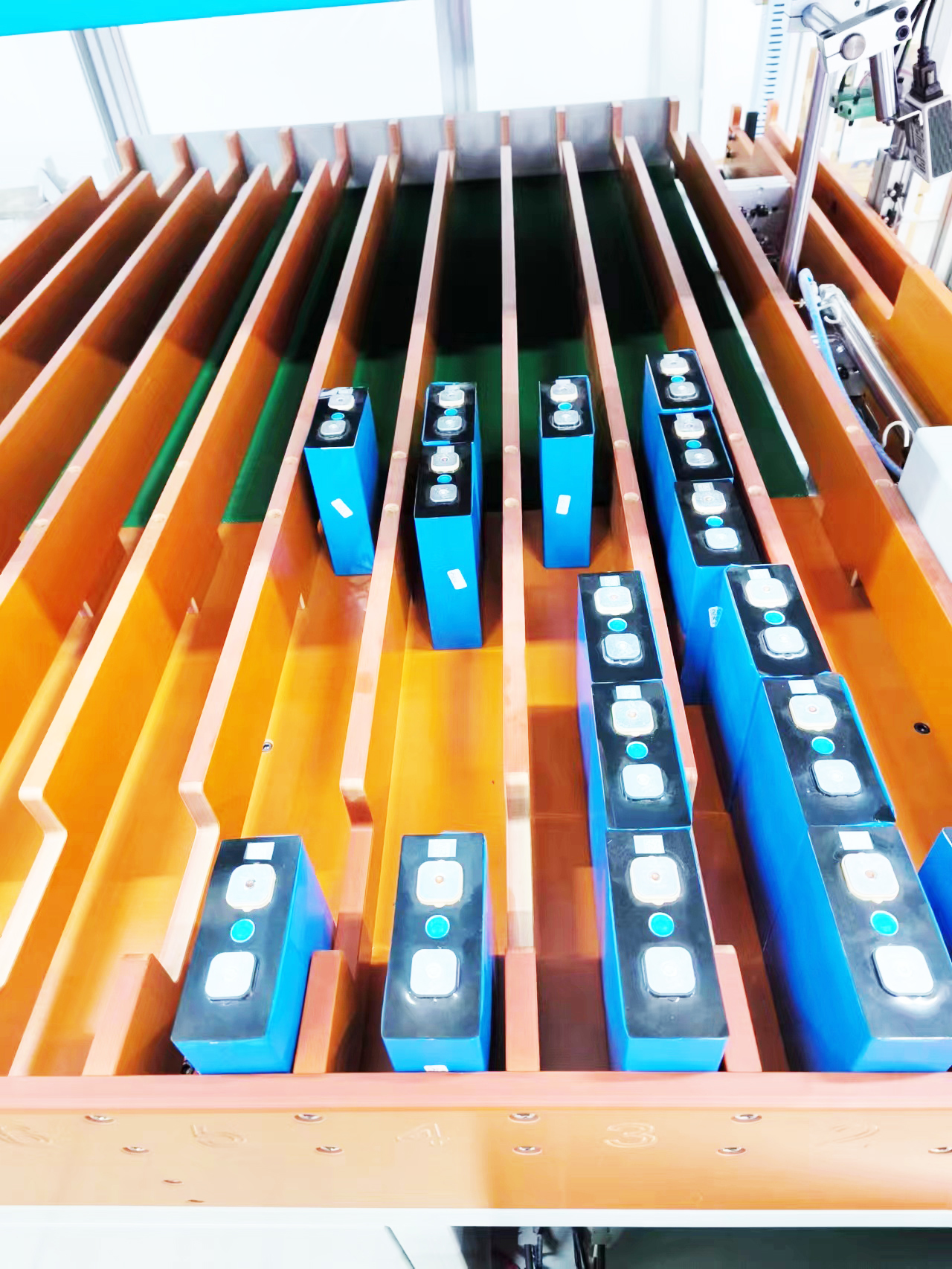

Channel 9OK,1NG
Test Data Store with U disk
Communication Interface RS485
Test Mode 4-wire system
Test Pin DZ100-214A30G
Dimensions L2070MM*W1120MM*H1710MM
Weight About 700KG
After-Sales Service
  • Engineers available for overseas machinery service
  • Video technical support
  • Free spare parts
  • Online support
  • 2-year warranty
Prismatic Aluminum Shell Cell Sorting Machine 2000PCS/H AC220V 0 Prismatic Aluminum Shell Cell Sorting Machine 2000PCS/H AC220V 1 Prismatic Aluminum Shell Cell Sorting Machine 2000PCS/H AC220V 2
Frequently Asked Questions
What types of machines can we make?

Our R&D equipment includes: Transistor spot welding power source, DC spot welding power source, automatic spot welding machine, dynamic performance tester of power cell, high-speed mat machine, 6-21 channel automatic sorting machine, Power Battery Performance Tester, power battery charge-discharge aging cabinet, CCD vision detector, automatic bracket machine, and automatic battery production lines.

Do you support after sales service?

Yes, we provide professional installation and training after purchase with a two-year warranty. We export to Europe, the United States, and Southeast Asian countries with service sites in India.

Is the quality of the product guaranteed?

As a high-tech enterprise established in 2005 specializing in R&D, production, and sales, we maintain a quality-first philosophy with cost-effective products that satisfy our global customers.

What scope does the product apply to?

With 11 years of experience in battery pack automation production equipment and production lines, our products are primarily used in digital batteries, energy storage batteries, tool batteries, power batteries, and automotive batteries.
