10000A Battery Spot Welder 220V 4KW for 18650 Cells 5000pcs/h
10000A Battery Spot Welder 220V 4KW for 18650 Cells 5000pcs/h
10000A Battery Spot Welder 220V 4KW for 18650 Cells 5000pcs/h 10000A Battery Spot Welder 220V 4KW for 18650 Cells 5000pcs/h 10000A Battery Spot Welder 220V 4KW for 18650 Cells 5000pcs/h 10000A Battery Spot Welder 220V 4KW for 18650 Cells 5000pcs/h 10000A Battery Spot Welder 220V 4KW for 18650 Cells 5000pcs/h 10000A Battery Spot Welder 220V 4KW for 18650 Cells 5000pcs/h 10000A Battery Spot Welder 220V 4KW for 18650 Cells 5000pcs/h 10000A Battery Spot Welder 220V 4KW for 18650 Cells 5000pcs/h

10000A Battery Spot Welder 220V 4KW for 18650 Cells 5000pcs/h

Product Details:
Place of Origin: China
Brand Name: BT
Certification: ISO9001
Model Number: BT-850B
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: USD 17000-24000 Set
Packaging Details: Wooden case
Delivery Time: 15 work days
Payment Terms: L/C,T/T,Western Union,MoneyGram
Supply Ability: 50 set month
Contact Now
  • Detail Information
  • Product Description

Detail Information
Application: Battery Pack Welding Machine Power: AC220V 50/60HZ 4KW
Air Pressure: 0.4-0.8Mpa,No Water, No Impurities Welidng Output Current: Max10000A
Spot Welding Data: CAD Data Import/dot Matrix Data Import/manual Input Nickel Sheet Thickness: 0.1-0.3mm
Productivity: About 5000pcs Cells/h Welding Pin: 1.7mm
Dimensions: L1630*W850*H1630MM Weight: About 220KG
Warranty: 2 Years
Highlight:

60hz Lithium Spot Welder

,

AC220V Lithium Spot Welder

,

ISO9001 Spot Welder For 18650 Battery

Product Description

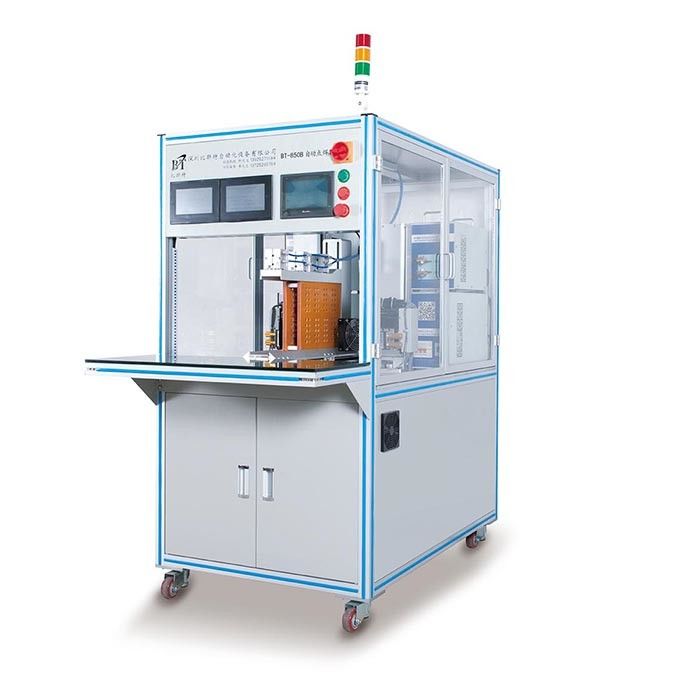

BT-850B-10000A Transistor Power Battery Pack Double Sides Spot Welding Machine
10000A Battery Spot Welder 220V 4KW for 18650 Cells 5000pcs/h 0
Product Application
This spot welder is designed for power battery applications including 18650/26650 series-parallel combinations, multi-parallel multi-series configurations, electric tool batteries, energy storage battery packs, and various lithium-ion battery types including ternary lithium-ion and lithium iron phosphate batteries.
Key Advantages
  • Aluminum alloy and sheet metal construction for durability and stability
  • Ideal for large-scale automatic battery spot welding
  • Consistent, high-quality welding results
  • High efficiency: 4600-5000 power cores per hour (18650 example)
  • User-friendly operation with anti-dull configuration
  • Stores 200 welding parameter sets for quick model switching
  • Real-time welding current monitoring with automatic shutdown for false welds
  • U Disk compatible for parameter storage and export
Technical Specifications
Specification Value
Y-axis Travel 0-400mm
X-axis Travel 0-600mm
Spot Welding Speed 4600-5000pcs/h
Nickel Sheet Thickness 0.1mm-0.4mm (depending on configuration)
Air Pressure 0.4-0.8Mpa
Power Supply 220V, 50/60Hz, 4KW
Max Motor Speed 1000mm/s
Transmission Progressive, imported precision linear guide rail
Run Power Servo electric
User Interface Touch screen
Operating System Embedded system + man-machine screen
Cell Range 14430/14500/18650/21700/26650/32650/37200
Weight 220KG
Dimensions L1630×W850×H1630mm
10000A Battery Spot Welder 220V 4KW for 18650 Cells 5000pcs/h 1 10000A Battery Spot Welder 220V 4KW for 18650 Cells 5000pcs/h 2 10000A Battery Spot Welder 220V 4KW for 18650 Cells 5000pcs/h 3 10000A Battery Spot Welder 220V 4KW for 18650 Cells 5000pcs/h 4 10000A Battery Spot Welder 220V 4KW for 18650 Cells 5000pcs/h 5 10000A Battery Spot Welder 220V 4KW for 18650 Cells 5000pcs/h 6 10000A Battery Spot Welder 220V 4KW for 18650 Cells 5000pcs/h 7 10000A Battery Spot Welder 220V 4KW for 18650 Cells 5000pcs/h 8
Frequently Asked Questions
Q: What types of machines can we make?
A: Our product range includes transistor spot welding power sources, DC spot welding power sources, automatic spot welding machines, dynamic performance testers, high-speed mat machines, automatic sorting machines, battery performance testers, charge-discharge aging cabinets, vision detectors, and complete battery production lines.
Q: Do you support after sales service?
A: Yes, we provide professional installation and training, with a two-year warranty. We have service support in Europe, the United States, Southeast Asia, and India.
Q: Is the quality of the product guaranteed?
A: As a high-tech enterprise established in 2005, we maintain strict quality control with a "quality first" philosophy. Our products have satisfied customers worldwide.
Q: What scope does the product apply to?
A: Our battery production equipment is used for digital batteries, energy storage batteries, tool batteries, power batteries, and automotive batteries.
10000A Battery Spot Welder 220V 4KW for 18650 Cells 5000pcs/h 9 10000A Battery Spot Welder 220V 4KW for 18650 Cells 5000pcs/h 10 10000A Battery Spot Welder 220V 4KW for 18650 Cells 5000pcs/h 11
