|Place of Origin:||China|
Payment & Shipping Terms:
|Minimum Order Quantity:||1|
|Price:||USD 2500-3000 Set|
|Packaging Details:||Wooden case|
|Delivery Time:||10 work days|
|Payment Terms:||L/C, T/T, Western Union, MoneyGram|
|Supply Ability:||200 set month|
|Power:||AC220 50/60hz 2KW||Air Pressure:||0.4-0.8Mpa,No Water, No Impurities|
|Spot Welding Pin:||1.7mm（can Used 1.5 Mm, 2mm Depending On The Battery）||Nickel Sheet Thickness:||0.1-0.3mm Need Slotted ;0.21-0.4mm Bump Welding Nickel Sheet|
|Welding Time:||1-10ms||Travel Of Welding Head:||40-140 Adjustable|
5000A Pneumatic Spot Welding Machine,
2KW Pneumatic Spot Welding Machine,
50kg Battery Production Line

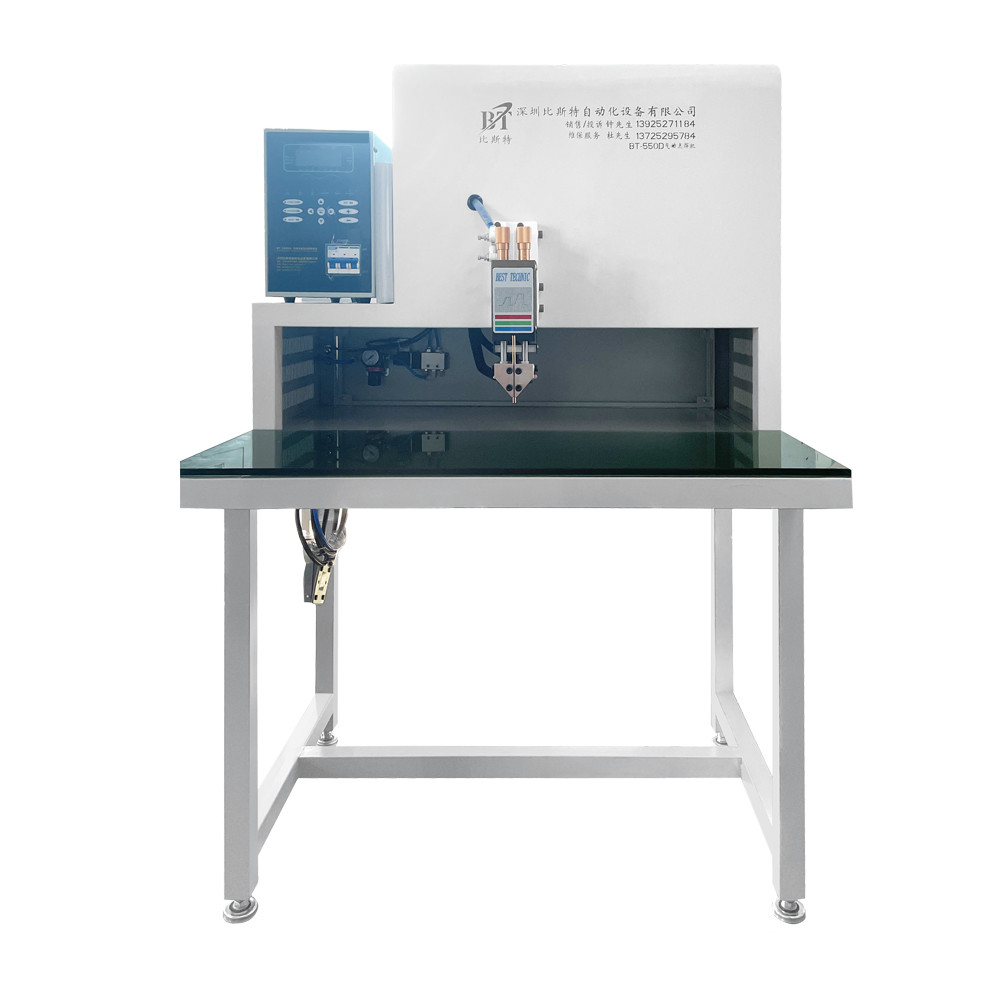

Precision Pneumatic Spot Welder Battery Production Line Machine
BT-500D-5000A pneumatic direct current spot welding machine, used for spot welding between electric core
and nickel piece, need to connect air pipe to carry on, can spot welding cylinder battery, prism battery and
►The parameters are micro-computerized, LCD display, key-side adjustment, accurate, direct-viewing and
►Use 1.7 mm solder pin spot welding, one solder pin can be used for more than 3 months
►Parameter setting interface use PVC keypad mask, spot welding current can be adjusted at any time
►Suitable for cylindrical core, prism core, polymer core spot welding
►Using BT-5000A DC spot welding power source, the maximum welding current is 6000A
►The welding spot is beautiful, the spark is small, no blackening, and the welding current is stable, the size
of the solder joint is even.
|Application||Cylindrical cells,prismatic cells,polymer cells|
|power||AC220 50/60hz 2KW|
|Spot Welding power||BT--5000A DC spot weling power|
|Welding out put power||Max 6000A|
|Air pressure||0.4-0.8Mpa,No water, no impurities|
|Spot welding pin||1.7mm(can used 1.5 mm, 2mm depending on the battery)|
|Nickel sheet thickness||0.1-0.3mm need slotted ;0.21-0.4mm Bump welding nickel sheet|
|Spot welding platform||L600*W300mm|
|Travel of welding head||40-140 Adjustable|
|Display interface||LCD Display|
|Parameter panel||PVC button surface mold|
|Pre welding current||800-2000A|
|After-sales service provided||Engineers available to service machinery overseas,Video technical support,Free spare parts,Online support|
A:What types of machines can we make?
B:Our own R & D equipment are: Transistor spot welding power source, DC spot welding power source, automatic spot
welding machine, dynamic performance tester of power cell, high-speed mat machine, 6-21 channel automatic sorting
machine, Power Battery Performance Tester, power battery charge-discharge aging cabinet, CCD vision detector, automatic
bracket machine, automatic battery production line etc.
A: Do you support after sales service?
B: Yes, after purchase we will have professionals to install and train, and the warranty is two years. Exported to Europe and the
United States, Southeast Asian countries, there is a site in India
A: Is the quality of the product guaranteed?
B: Our company is a research and development, production, sales as one of the high-tech enterprises, since
its inception in 2005, has always insisted on quality first, service first business philosophy, product quality,
cost-effective. Overseas customers are also satisfied with our products, their satisfaction is our motivation
A: What scope does the product apply to?
B: Company 11 years committed to column Battery Pack Automation Production Equipment, and column Battery Pack
Automation Production Line. Products are mainly used in digital batteries, energy storage batteries, tool batteries, power
batteries, automotive batteries, etc.
