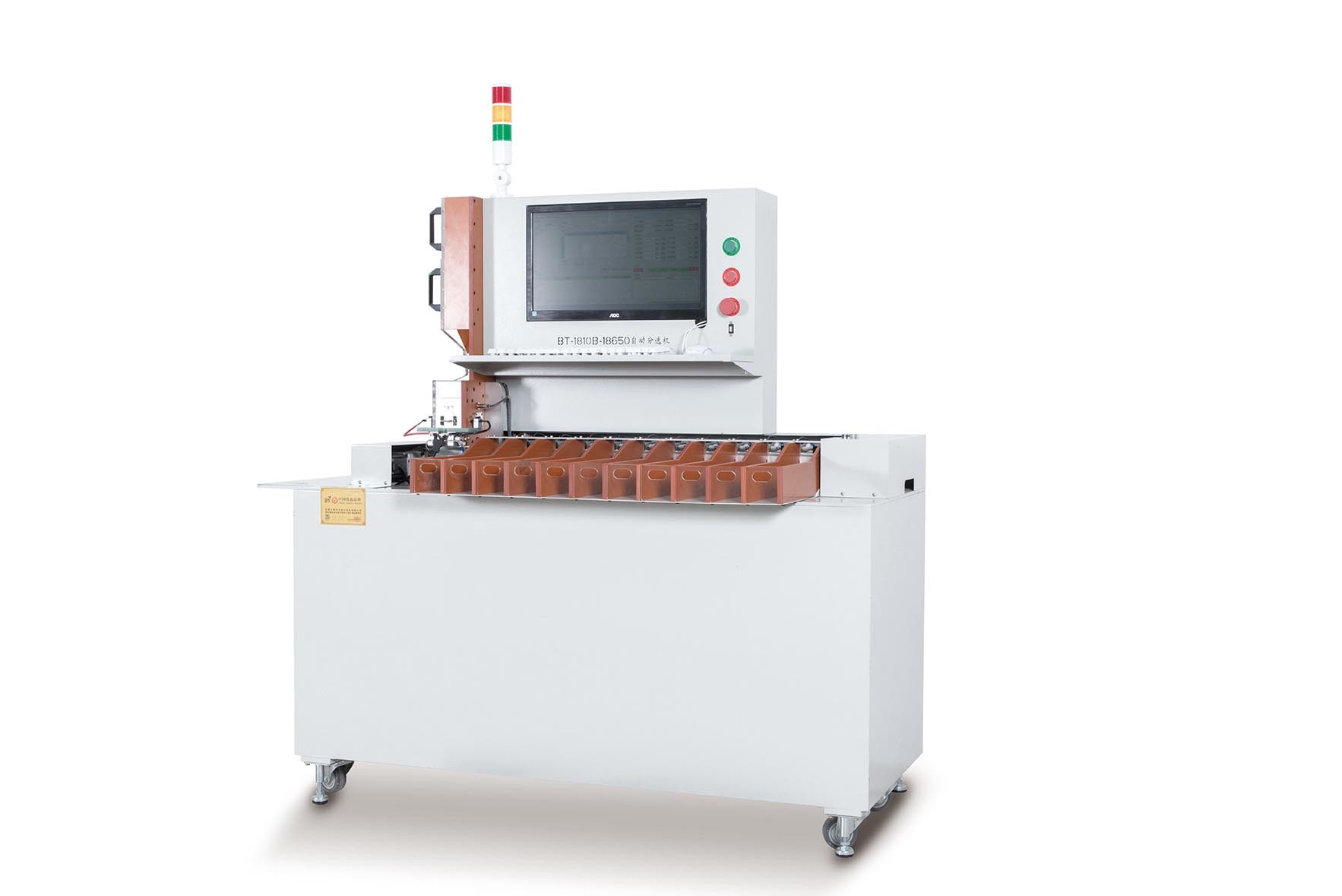

Cylindrical Battery Sorting Machine 8-21 Channels Customized

Product Details:
Place of Origin: China
Brand Name: BT
Certification: ISO9001
Model Number: BT-1810B
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: USD 3600-11500 Set
Packaging Details: Wooden case
Delivery Time: 15 work days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 50 set month
  • Detail Information
  • Product Description

Detail Information

Air Pressure: 0.4-0.8Mpa,No Water, No Impurities Battery Cell Range: 14430/14500/18500/18650/21700/26650/26700/32650/32700
Channel: 8-16 OK,1NG Test Data: U Disk Storage,can Be Copied To The Computer
Dimensions: L1100*W930*H1390MM/ L2260*W930*H1390MM Weight: About 110/160KG
Warranty: 2 Year
High Light:

Cylindrical Battery Sorting Machine


21 Channels Battery Sorting Machine

Product Description

8-21 Channels Customized Cylindrical Lithium-Ion Battery Sorting Machine

Main function:

Automatic selection of cylinder voltage and internal resistance according to different shift requirements



Product characteristics:


♦ Optional distribution core dynamic tester, which actually reflects the quality and load performance of the battery core.

♦ External connection: can be customized to automatically connect the automatic insulation paper pasting machine,

   (the battery core is poured into the automatic insulation paper pasting machine, and the pasted insulation paper automatically

   flows into the automatic sorting machine for sorting, saving manpower)


♦ HK3560 internal resistance tester is standard, and different internal resistance tester can be selected according to customer requirements

♦ The equipment debugging is simple, easy to learn and understand, and comes with fault alarm.






                                                      BT-1810 cell sorting machine
Power AC220V 50/60HZ 1.6KW
Air pressure 0.4-0.8Mpa,No water, no impurities
battery cell range 14430/14500/18500/18650/21700/26650/26700/32650/32700
Standard IR test HK3560
Optional tester HIOKI3561/HIOKI2562/HK3561
Efficiency About 5000pcs/h
Control device PLC Touch screen control
Run power Stepper motor
Voltage setting 0.00000V-6.0000V
Internal resistance 000.00mΩ-999.99mΩ
Channel 8-16 OK,1NG
Test data U disk storage,can be copied to the computer
Communication interface RS485
Test method 4-wire system
Test pin DZ100-214A30G
Dimensions L1100*W930*H1390MM/ L2260*W930*H1390MM

About 110/160KG

Usage Coin Cell Test
Warranty 2 Years


_20200402112039Cylindrical Battery Sorting Machine 8-21 Channels Customized 6




A:How long is the guarantee period of the machine?

B:Our machines are guaranteed for two years, during which the company will repair them free of charge if there is any problem.

A:Do you support after sales service?

B:Yes, after purchase we will have professionals to install and train, and the warranty is two years. Exported to Europe

and the United States, Southeast Asian countries, there is a site in India

A:What scope does the product apply to?

B:Company 12 years committed to column Battery Pack Automation Production Equipment, and column Battery

Pack Automation Production Line. Products are mainly used in digital batteries, energy storage batteries, tool batteries,

power batteries, automotive batteries, etc.
