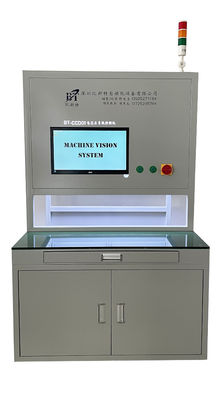

0.6KW Battery Pack Testing Machine Cell Positive And Negative Test

Product Details:
Place of Origin: China
Brand Name: BT
Certification: ISO9001
Model Number: BT-CCD01
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: USD 5800-7800 Set
Packaging Details: Wooden case
Delivery Time: 15 work days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 30 set month
  • Detail Information
  • Product Description

Detail Information

Application: Battery Testing Power: AC220V 0.6KW 50/60HZ
Cell Range: 14430/14500/18500/18650/21700 Detection Accuracy: The Core Is Not Deformed Or Rusted,100%
IPC: I7 Processor Material Movement Speed: 1.5m/min
High Light:

0.6KW Battery Pack Testing Machine


0.6KW Cell Testing Machine


AC220V Battery Pack Testing Machine

Product Description

Battery Cells Positive And Negative Cylindrical Battery Pack Tester &Battery Polarity CCD Detection System Test

Main function:

For the cylindrical core, use the camera to collect the positive and negative electrode data, compare the

number of positive and negative poles with the sample, quickly compose the result (NG or OK), and mark

the NG position to confirm the positive and negative electrode before the battery pack enters the point

welding, to prevent the defects caused by the positive and negative electrode position error.


Product characteristics:
♦ Adopt Hikvision 6 million HD industrial camera
The equipment is free of warranty for two years from the factory, except vulnerable parts
If the machine fails, the after-sales process will be handled within 24 hours
Function setting is simple, easy to understand and easy to operate, without on-site training
The industrial control machine supports the sudden power outage function, and the database works normally
This computer database, mainly for cylindrical core positive and negative electrode data, other categories are incompatible




Function Data acquisition of positive and negative pole in cylindrical cell
Application Battery testing
Power AC220V 0.6KW 50/60HZ
Cell range 14430/14500/18500/18650/21700
Detection range 400*300mm, Customize for a larger size
Detection speed 100PCS/1.5s
Detection accuracy The core is not deformed or rusted,100%
IPC I7 processor
Material movement speed 1.5m/min
LED light source Battery-specific type
Display the pixels 1920*1080
Display screen 1.7-inch color display
Dimensions L900*W700*H1600MM
Weight About 80KG
After-sales service provided Engineers available to service machinery overseas,Video technical support,Free spare parts,Online support
Warranty 2 Years
Certification ISO9001



A: How long is the guarantee period of the machine?

B: Our machines are guaranteed for two years, during which the company will repair them free of charge

    if there is any problem.

A: Do you support after sales service?

BYes, after purchase we will have professionals to install and train, and the warranty is two years. Exported to

    Europe and the United States, Southeast Asian countries, there is a site in India

AWhat scope does the product apply to?

BCompany 12 years committed to column Battery Pack Automation Production Equipment, and column Battery

Pack Automation Production Line. Products are mainly used in digital batteries, energy storage batteries,

tool batteries, power batteries, automotive batteries, etc.
