Shenzhen Best Automation Equipment Co., Ltd.

AC220V 2KW Low Power Battery Tab Spot Welder For Li Ion Boat Battery

Product Details:
Place of Origin: China
Brand Name: BT
Certification: ISO9001
Model Number: BT-550D-60
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: USD 2200-2600 Set
Packaging Details: Wooden case
Delivery Time: 10 work days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 200 set month
  • Detail Information
  • Product Description

Detail Information

Application: Cylindrical Cells,prismatic Cells,polymer Cells Power: 2KW
Productivity: 800pcs/h -1200pcs/h Spot Welding Power: BT-60AC Spot Weling Power
Welding Out Put Power: Max 16KW Air Pressure: 0.4-0.8Mpa,No Water, No Impurities
High Light:

0.8Mpa Battery Spot Welding Machine

,

16KW Battery Spot Welding Machine

,

Boat Battery Spot Welding Machine

Product Description

AC220V 2KW Low Power Battery Spot Welding Machine For Li Ion Boat Battery



Product Application

The Automatic Battery Pack Spot Welder is a general platform of automatic processing technology based on CNC, suitable battery pack spot welding and assembly in the factory. Compared with manual spot welding machine, the efficiency and accuracy of welding have been greatly improved. Humanized design makes the operation and debugging very easy and convenient. Design of components built-in makes appearance more concise.





Features

1. Support breakpoint start, automatic start, and manual start.
2. Cold solder joint and sealing off alarm.
3. Easy program, support matrix, array and point program, can store 99 group parameters.
4. Welding needle abrasion alarm.
5. Build-in welding current monitor, can display real time welding current.
6. Design for NB, Power Tool, Gardening Tool, High Power, Energy Storage battery, Electric Motor Car Battery Pack, and other lithium battery packs spot welding.
7. High productivity: 0.35s/spot
8. Can be matched with the production line of lithium battery group.
9. Automatic battery pack spot welder adopts traditional pneumatic single point dynamic, ensure the welding accuracy, and improve the welding appearance quality and reliability.
10. Can store dozens process of different battery packs product, switching products without re-setting parameters.
11. Can match a variety brand of spot welders.






































Intorduction:

BT-550D-60 precision pneumatic spot welding machine is the latest high-level spot welding machine, which is

designed according to the most advanced spot welding machine abroad.





                                                    BT-550D-60
Application Cylindrical cells,prismatic cells,polymer cells
power AC220 50/60hz 2KW
Productivity 800 -1200pcs/h
Spot Welding power BT-60AC spot weling power
Welding out put power Max 16KW
Air pressure 0.4-0.8Mpa,No water, no impurities
Spot welding pin 1.7mm(can used 1.5 mm, 2mm depending on the battery)
Nickel sheet thickness 0.1-0.3mm need slotted ;0.21-0.4mm Bump welding nickel sheet
Spot welding platform L600*W300mm
Woeking way Pneumatic
Travel of welding head 40-140 Adjustable
Display interface LCD Display
Parameter panel PVC button surface mold
Pre welding power 1-99%
Welding pulse 1-10PCS
Welding power 1-99%
Dimensions L900*W900*H1350MM
Weight About 50kg
After sales

Engineers available to service machinery overseas,Video technical support,Free spare parts,Online support

Warranty  2 Years

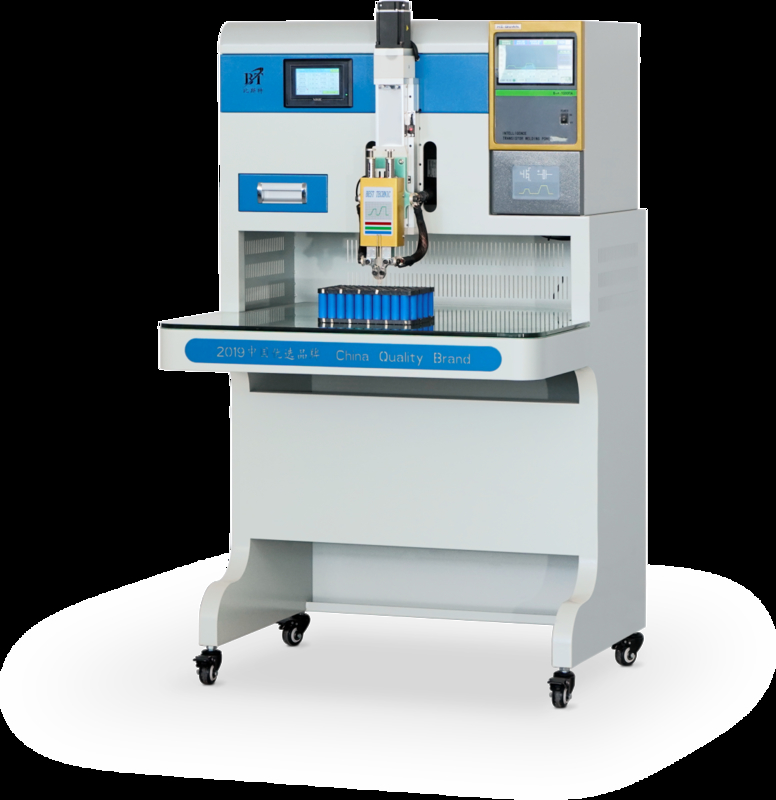

AC220V 2KW Low Power Battery Tab Spot Welder For Li Ion Boat Battery 2550D.jpg 1



                                                             FAQ

A: What types of machines can we make?

B: Our own R & D equipment are: Transistor spot welding power source, DC spot welding power source, automatic spot

welding machine, dynamic performance tester of power cell, high-speed mat machine, 6-21 channel automatic sorting

machine, Power Battery Performance Tester, power battery charge-discharge aging cabinet, CCD vision detector, automatic

bracket machine, automatic battery production line etc.

A: Do you support after sales service?

BYes, after purchase we will have professionals to install and train, and the warranty is two years. Exported to Europe and the

United States, Southeast Asian countries, there is a site in India

A: Is the quality of the product guaranteed?

B: Our company is a research and development, production, sales as one of the high-tech enterprises, since

its inception in 2005, has always insisted on quality first, service first business philosophy, product quality,

cost-effective. Overseas customers are also satisfied with our products, their satisfaction is our motivation

AWhat scope does the product apply to?

BCompany 11 years committed to column Battery Pack Automation Production Equipment, and column Battery Pack

Automation Production Line. Products are mainly used in digital batteries, energy storage batteries, tool batteries, power

batteries, automotive batteries, etc.

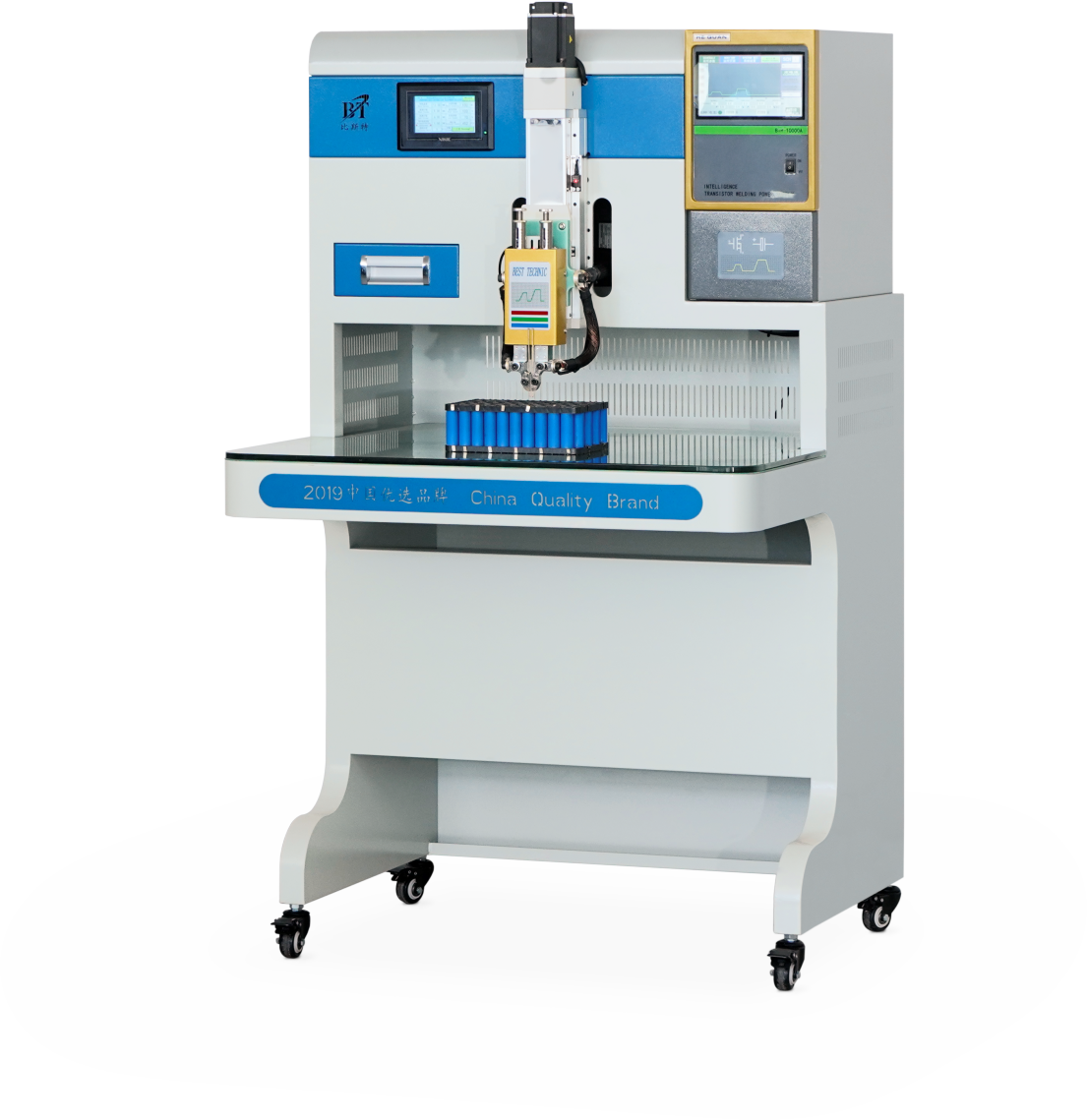

AC220V 2KW Low Power Battery Tab Spot Welder For Li Ion Boat Battery 5
