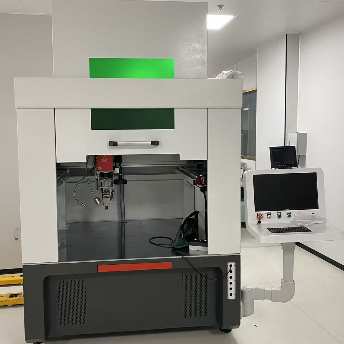

3000W Battery Laser Welding Machine for Lithium Cells 600MM X-Axis
3000W Battery Laser Welding Machine for Lithium Cells 600MM X-Axis 3000W Battery Laser Welding Machine for Lithium Cells 600MM X-Axis 3000W Battery Laser Welding Machine for Lithium Cells 600MM X-Axis 3000W Battery Laser Welding Machine for Lithium Cells 600MM X-Axis 3000W Battery Laser Welding Machine for Lithium Cells 600MM X-Axis 3000W Battery Laser Welding Machine for Lithium Cells 600MM X-Axis 3000W Battery Laser Welding Machine for Lithium Cells 600MM X-Axis

3000W Battery Laser Welding Machine for Lithium Cells 600MM X-Axis

Product Details:
Place of Origin: China
Brand Name: BT
Certification: CE
Model Number: BT-3000W/6000W
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: wooden case
Delivery Time: 30 work days
Payment Terms: T/T
Supply Ability: 30/month
Contact Now
  • Detail Information
  • Product Description

Detail Information
Model: BT-3000W Fiber Laser: MAS CW-3000-SM-L
Welding Head: BT Custom Galvanometer Welded Water Cooler Head Welding Lens: High Power Welding Lens
Observation System: CCD Observation System Protective Gas System: Equipped With Protective Air Nozzle
Lens Protection System: Valve Knife Protective Lens Positioning System: Equipped With Red Light Positioning Indicator
Water Cooler: Dongluyang Double Constant Temperature, Double Circulation System, Overtemperature Alarm, Flow Protection Laser Control System: BT Precision Welding Software 3000 System
Weight: About 770KG
Highlight:

3000W lithium battery laser welder

,

battery laser welding machine 600mm

,

lithium cell welder with warranty

Product Description

Battery Laser Welding Machine - BT-3000W-ZJ-SD
Application Scope and Functions

This 3000W galvanometer laser welding machine (manual type) is specifically designed for:

  • New energy power battery spot welding and continuous welding
  • Electrode welding and battery connection sheet applications
Key Features
  • Advanced welding control: Multi-axis mobile welding head with diamond mirror swing laser stir welding control for enhanced welding depth and strength
  • Integrated design: Combined laser optical path and power control system for stability and mobility
  • Precision table: High precision control with stepless speed regulation and ball screw mechanism for large part welding
  • Optimized waveform control: Preset welding parameters for different materials to ensure optimal results
  • Superior weld quality: Small heat affected area, deep penetration, firm welding with no repair marks or depressions
Performance Specifications
  • Maximum welding stroke: X axis 600mm, Y axis 500mm, Z axis 120-300mm (customizable)
  • Production efficiency: Approximately 400 cells/hour
  • Product pass rate: >99%
  • Equipment operation rate: 98%
Machine Configurations
3000W Battery Laser Welding Machine for Lithium Cells 600MM X-Axis 0

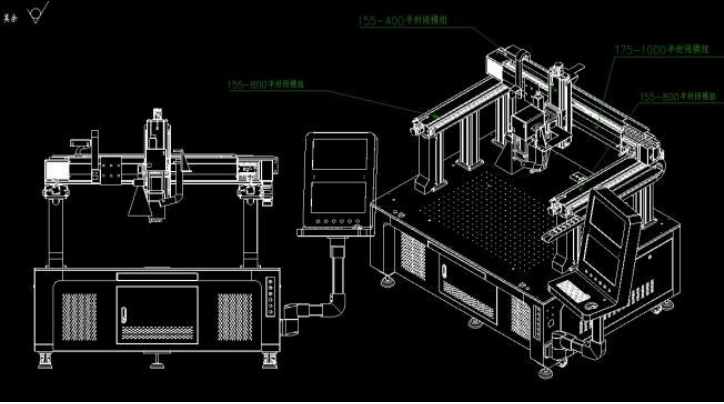

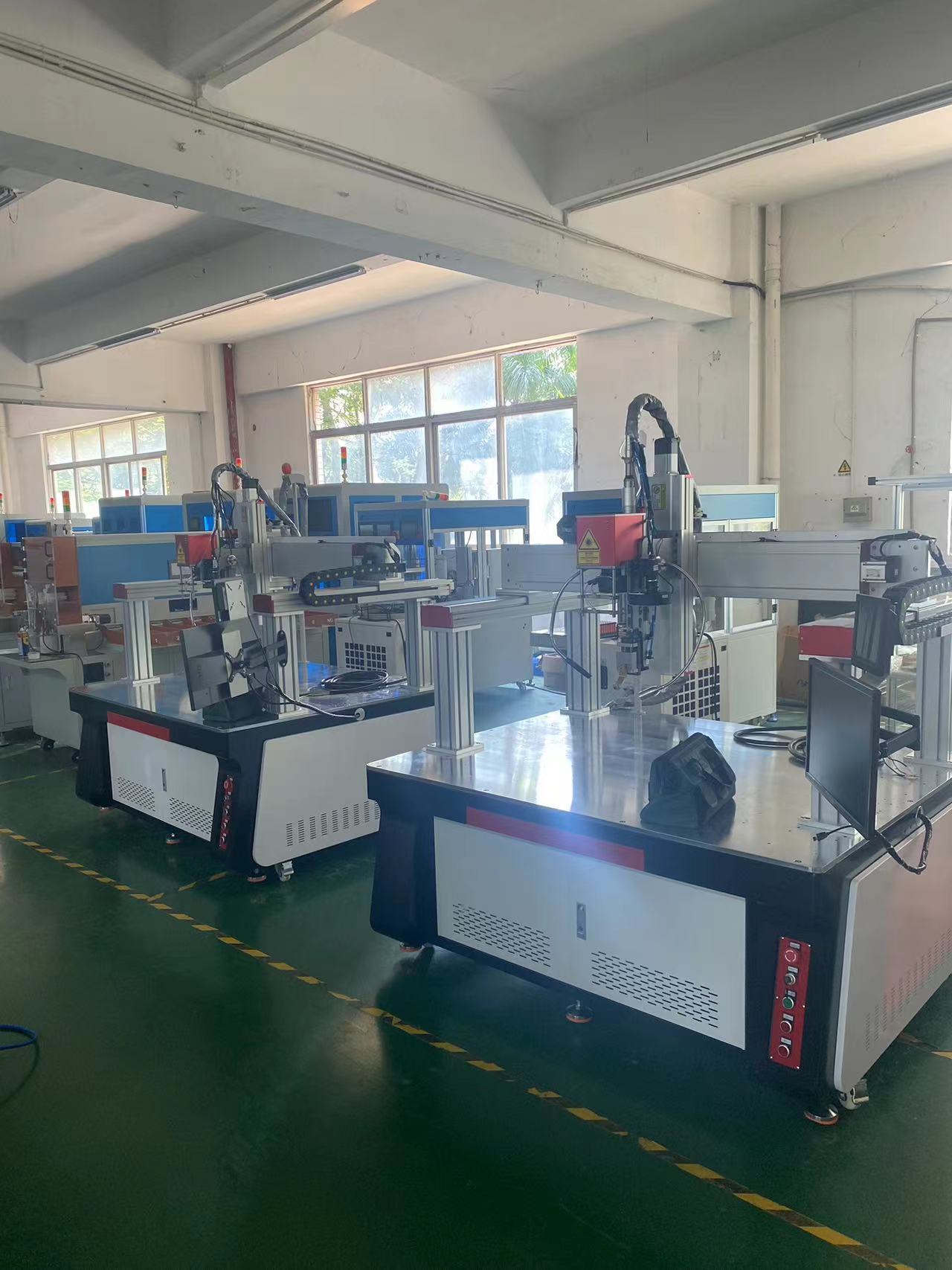

Open type configuration
3000W Battery Laser Welding Machine for Lithium Cells 600MM X-Axis 1

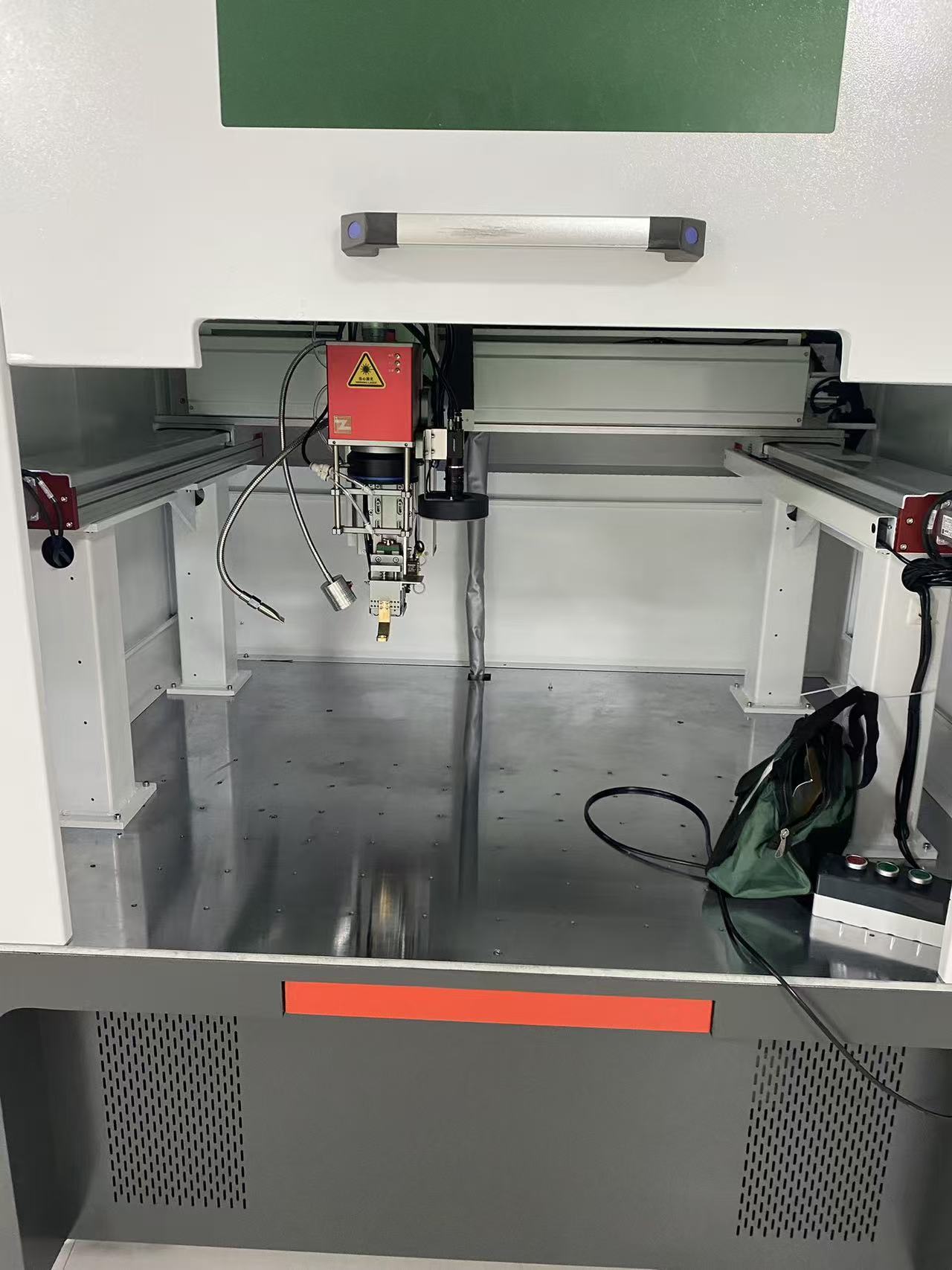

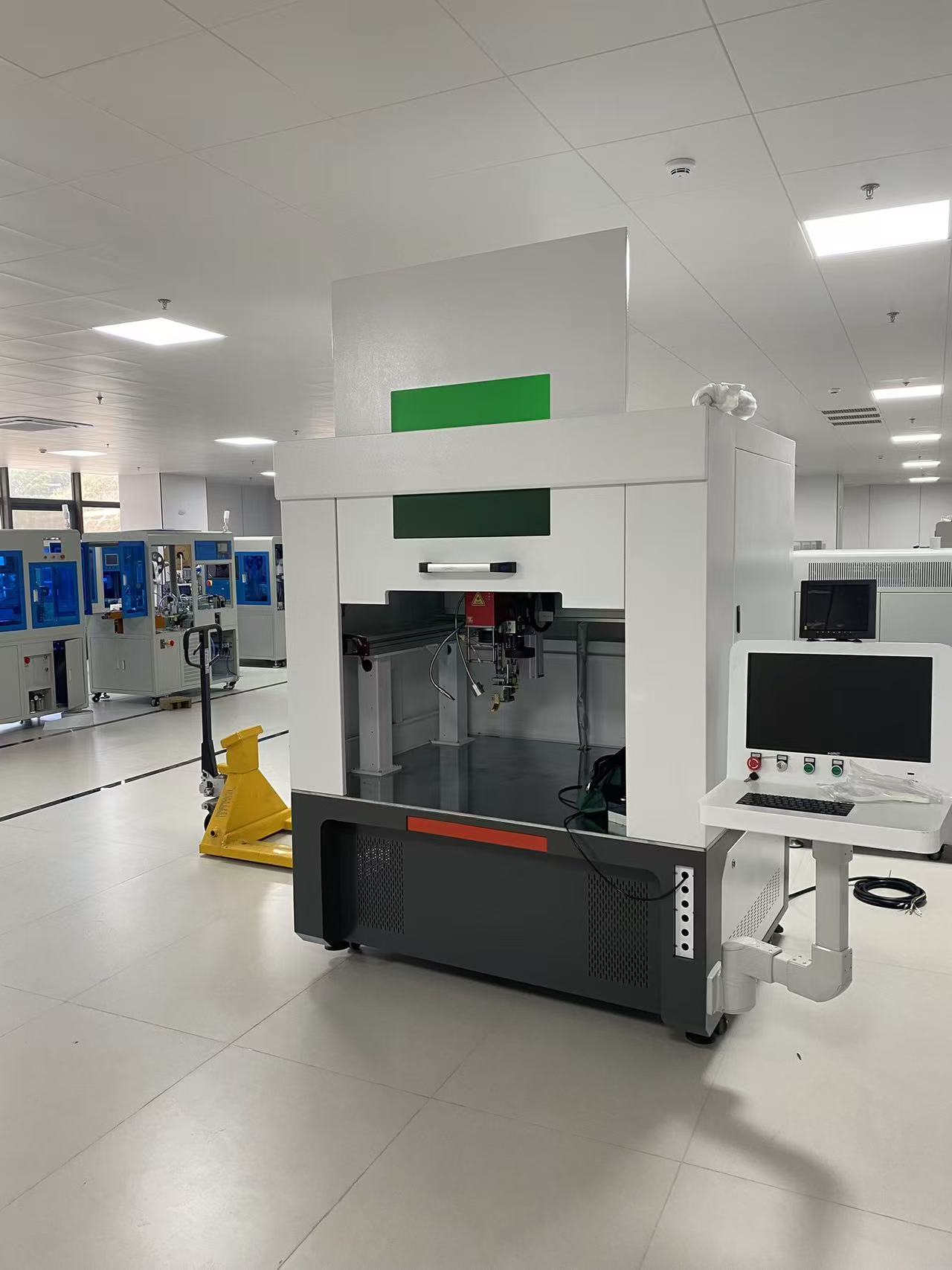

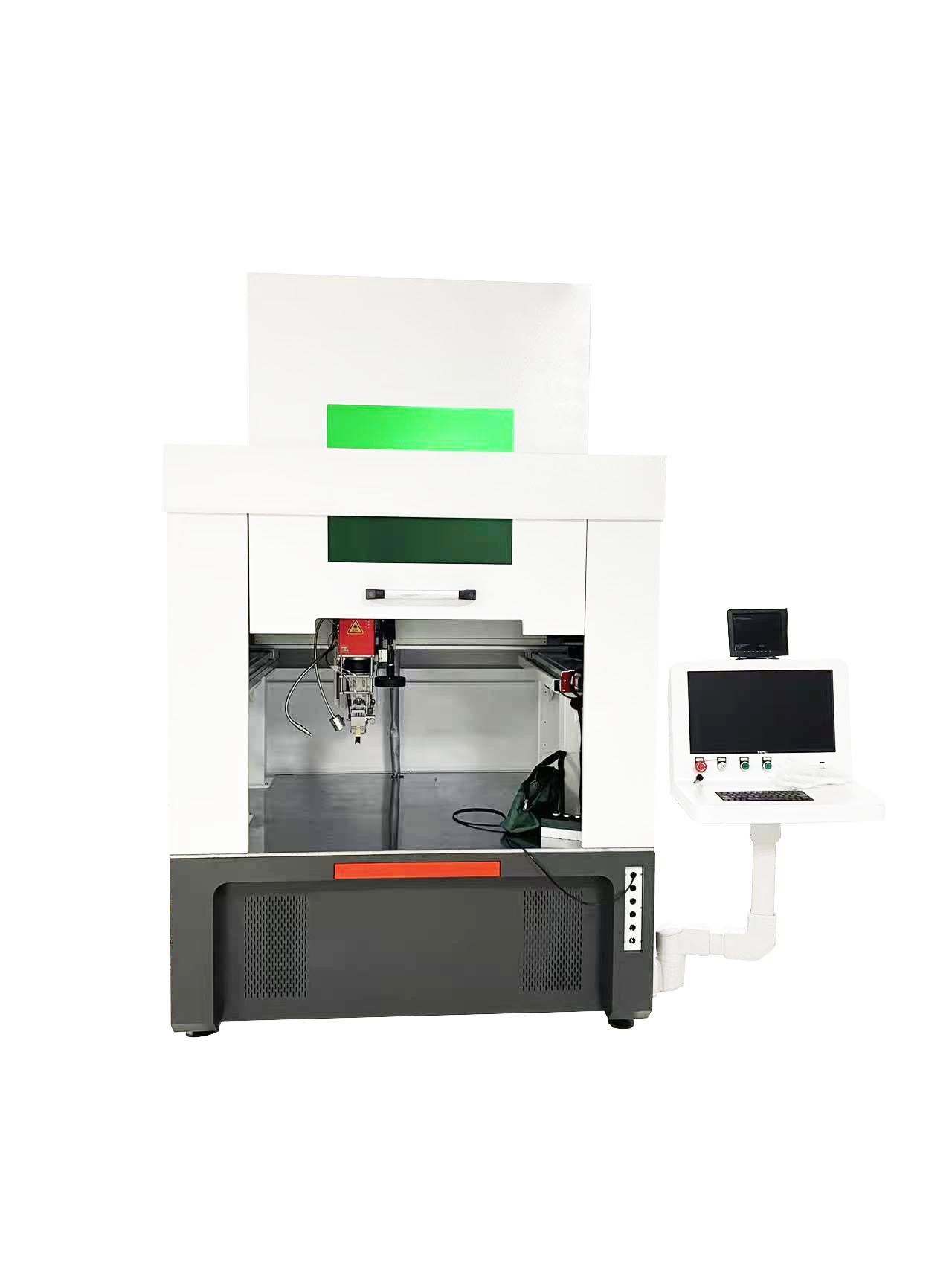

Closed type configuration
Technical Specifications
Component Specification
Fiber laser MAS CW-3000-SM-L
Welding head BT custom galvanometer welded water cooler head
Observation system CCD observation system
Protective systems Protective air nozzle and valve knife protective lens
Water cooler Dongluyang double constant temperature system with overtemperature alarm
Control system BT Precision welding software 3000 system
Power 10KW

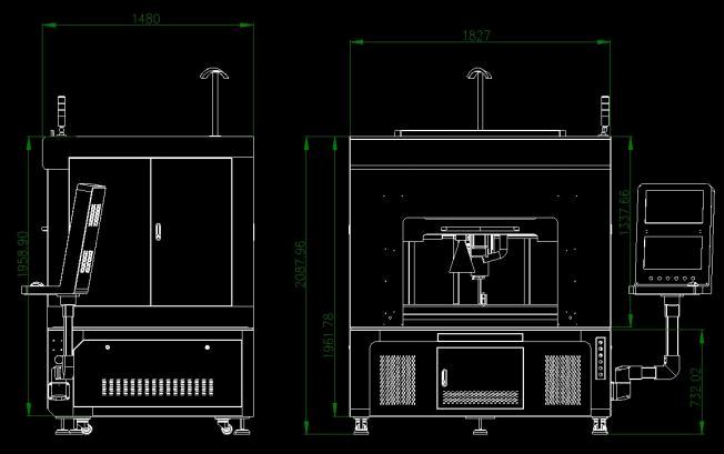

Dimensions 1900×1500×2000mm (L×W×H)
Weight Approximately 770kg
Laser Specifications
Parameter Value
Wavelength 1.064μm
Maximum power 3000W
Welding depth 0.1-3.5mm
Pulse width 1-200ms
Spot size 0.2-4mm
Table speed 20-300mm/s
Environmental Requirements
  • Power supply: AC three-phase 380V±10%, 10KW 50HZ
  • Air source: 0.4-0.8Mpa (dry, impurity-free)
  • Temperature range: 0-45℃
  • Humidity: ≤85% RH (no condensation)
  • Environment: Vibration-free, no electromagnetic interference, no corrosive/flammable gases
3000W Battery Laser Welding Machine for Lithium Cells 600MM X-Axis 2
3000W Battery Laser Welding Machine for Lithium Cells 600MM X-Axis 3
Frequently Asked Questions
How do I confirm you are the manufacturer?
  • Factory photos with our name
  • Video calls during working hours (no appointment needed)
  • Factory visits welcome anytime
  • Regular production updates with photos/videos
  • Professional engineering support for after-sales service
What types of machines can you make?

We manufacture all battery assembly machines including:

  • Cell testing, insulation paper sticking, sorting, welding, testing, and aging equipment
  • Machines for cylindrical, prismatic, and polymer cells
  • Both manual and automatic configurations
  • Single machines and complete production lines
Can you help set up a plant?

Yes, we can provide complete plant setup assistance. Please provide:

  • Your raw materials and product details
  • Efficiency requirements
  • Budget parameters

We'll develop a customized plan and can recommend raw material suppliers if needed.

What if the machine parameters don't match my needs?

Most of our machines are customized. Please send your specific requirements and we'll adapt the design accordingly.

Do you provide after-sales service?

Yes, we offer comprehensive support including:

  • Professional installation and training
  • 2-year warranty
  • International support for Europe, USA, and Southeast Asia
  • Local service center in India
