ISO9001 350KG Battery Cell Spot Welder For 18650 14500 Making

Product Details:
Place of Origin: China
Brand Name: BT
Certification: ISO9001
Model Number: BT-1418
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: USD 24000-26000 Set
Packaging Details: Wooden case
Delivery Time: 15 work days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 30 set month
  • Detail Information
  • Product Description

Detail Information

BT-1418 Single Battery Automatic Spot Welding Machine 18650/14500 Battery Making Machine: AC220V 50/60HZ 8KW Standard Spot Welding Power: 2 Set BT-5000A DC Welding Power
Welding Output Power: Max 6000A Control Device: PLC Touch Screen Control
Run Power: 750W Servo Electric Productivity: About 1300PCS Cells/hour
Battery Range: 14430/14500/18500/18650/21700 High Temperature Glue Width: 10MM
Spot Welding Pins: 1.5*100mm Nickel Sheet Thickness: 0.08MM-0.15MM
Dimensions: L2250*W1700*H1820MM Weight: 350KG
Warranty: 2 Years
High Light:

350KG Battery Cell Spot Welder

,

ISO9001 Spot Welder For 18650

,

14500 Battery Cell Spot Welder

Product Description

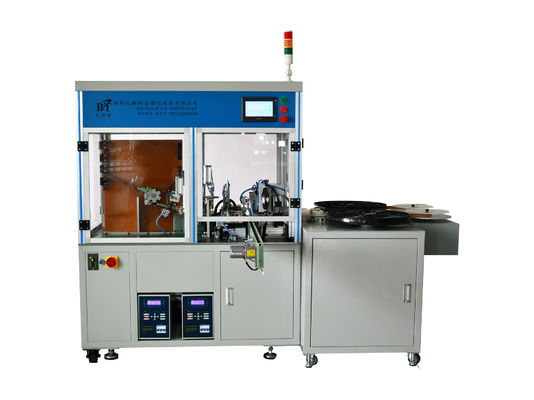

BT-1418 Single Battery Automatic Spot Welding Machine 18650/14500 battery making machine



Main function:

Cylindrical core automatic test voltage internal resistance, automatic detection text  position,

automatic side high-temperature glue, automatic welding.bt-1418.jpg

Product Description

Product characteristics:

♦ Adopting DC welding power source, the welding is stable and reliable.

♦ Imported Tungsten Steel Cutter, durable.

♦ Standard IR tester: HK3561.

♦ The nickel sheet feeding mechanism adopts 6-axis Servo Motor and the position of

   nickel sheet is digitized.

♦ Good consistency of the verticality of the lead-out film position.

ISO9001 350KG Battery Cell Spot Welder For 18650 14500 Making 1-2.jpg2.jpg3.jpg

Power

AC220V   50/60HZ   8KW

Air pressure 0.4-0.8Mpa,Air source must be used when there is a filter device to ensure that the flow of water-free impurities.
Standard spot welding power 2 Set BT-5000A  DC welding power
Welding output power Max 6000A
Control device

PLC Touch screen contro

Run Power 750W Servo electric
Battery range 14430/14500/18500/18650/21700 Customizable
Productivity About 1300PCS cells/hour
High temperature glue width 10MM
High temperature glue feeding length 10-20mm
Spot welded nickel sheet exposed length ≥2.5mm
Nickel sheet thickness 0.08-0.15mm
Nickel sheet width Customized
Nickel sheet max outer diameter 500mm
Spot welding pin 1.5mm
Dimensions L2250*W1700*H1820MM
Weight

350KG



Company Information


Our Services






Packaging & Shipping

 ISO9001 350KG Battery Cell Spot Welder For 18650 14500 Making 10

FAQ



                                                                                       FAQ

A:What types of machines can we make?

B:Our own R & D equipment are: Transistor spot welding power source, DC spot welding power source, automatic

spot welding machine, dynamic performance tester of power cell, high-speed mat machine, 6-21 channel automatic

sorting machine, Power Battery Performance Tester, power battery charge-discharge aging cabinet, CCD vision detector,

automatic bracket machine, automatic battery production line etc.

A:Do you support after sales service?

B:Yes, after purchase we will have professionals to install and train, and the warranty is two years. Exported to Europe

and the United States, Southeast Asian countries, there is a site in India

A:Is the quality of the product guaranteed?

B:Our company is a research and development, production, sales as one of the high-tech enterprises,

since its inception in 2005, has always insisted on quality first, service first business philosophy, product

quality, cost-effective. Overseas customers are also satisfied with our products, their satisfaction is our motivation

A:What scope does the product apply to?

B:Company 12 years committed to column Battery Pack Automation Production Equipment, and column Battery

Pack Automation Production Line. Products are mainly used in digital batteries, energy storage batteries, tool batteries,

power batteries, automotive batteries, etc.
