Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | BT |
| Certification: | ISO9001 |
| Model Number: | BT-850B-8000A |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 1 |
| Price: | USD 16000-20000 Set |
| Packaging Details: | Wooden case |
| Delivery Time: | 15 work days |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 50 set month |
|
Detail Information |
|||
| Y-axis Travel: | 200-400mm | X-axis Travel: | 200-600mm |
|---|---|---|---|
| Air Pressure: | 0.4-0.8Mpa,No Water, No Impurities | User Interface: | Touch Screen |
| Nickel Sheet Thickness: | 0.1MM---0.3MM | Battery Cell Range: | 14430/14500/18500/18650/21700/26650/32650/32700 |
| High Light: | 1.7mm Lithium Ion Battery Spot Welding Machine,5000psc/H Lithium Ion Spot Welding Machine,8000A Lithium Ion Spot Welding Machine |
||
Product Description

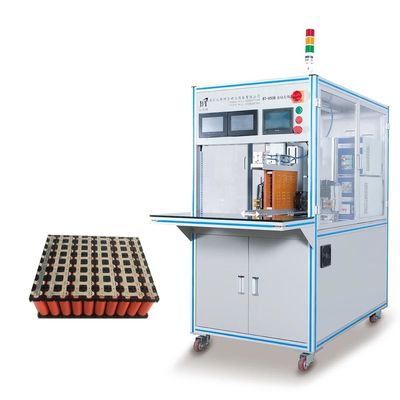

1.7mm Welding Pin Battery Spot Welding Machine For Tool Battery
Introduction:
BT-850B-8000A double-sided automatic spot welding machine, using two 8000A power supplies, can replace
spot welding according to different customer needs, monitor the welding current in real time, need virtual welding
or fire automatic shutdown alarm.
Product characteristics:
1. equipment adopts aluminum alloy and sheet metal structure, firm, not easy to loose, and ensure stability.
2. Suitable for automatic spot welding of large batteries.
3. Spot welding effect is stable and reliable.
4. High welding efficiency, taking 18650 as an example: about 4600-5000PCS power core / h
5. Spot welding mold has an anti-dark structure, and ordinary personnel can debug the equipment and operation equipment.
6. The equipment can store 200 sets of spot welding parameters, and can quickly switch the spot welding mode.
| SPECIFICATIONS FOR BT-850-8000A | |
| Application | Battery Welding Machine |
| Max Motor Speed | 1000mm/s |
| Y-axis Travel | 200-400mm |
| X-axis Travel | 200-600mm |
| Air pressure | 0.4-0.8Mpa |
| Welding power | BT-8000A DC spot welding power supply,2 set |
| User Interface | Touch screen |
| Control device | 7.5-inch touch screen |
| spot welding time | 2-10ms |
| Nickel sheet thickness | 0.1MM---0.3MM |
| power | AC380 50/60hz 8kw |
| Welding current | Max 8000A |
| Battery cell range | 14430/14500/18500/18650/21700/26650/32650/32700 |
| Productivity | 4000-5000psc/h |
| Welding pin | 1.7mm(can used 1.5 mm, 2mm and 4mm depending on the battery) |
| Dimensions | L1630*W850*H1630MM |
| Weight | About 220kg |
FAQ
A: How long is the guarantee period of the machine?
B: Our machines are guaranteed for two years, during which the company will repair them free of charge if there is any problem.
A: Do you support after sales service?
B: Yes, after purchase we will have professionals to install and train, and the warranty is two years. Exported to Europe
and the United States, Southeast Asian countries, there is a site in India
A: What scope does the product apply to?
B: Company 12 years committed to column Battery Pack Automation Production Equipment, and column Battery
Pack Automation Production Line. Products are mainly used in digital batteries, energy storage batteries, tool batteries,
power batteries, automotive batteries, etc.
