Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | BT |
| Certification: | ISO9001 |
| Model Number: | BT-850B-10000A |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 1 |
| Price: | USD 17000-24000 Set |
| Packaging Details: | Wooden case |
| Delivery Time: | 15 work days |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 50 set month |
|
Detail Information |
|||
| Application: | Battery Pack Welding | Max Motor Speed: | 1000mm/s |
|---|---|---|---|
| Air Pressure: | 0.4-0.8Mpa,No Water, No Impurities | Spot Welding Time: | 2-10ms |
| Nickel Sheet Thickness: | 0.1-0.3mm Need Slotted ;0.21-0.4mm Bump Welding Nickel Sheet | Run Power: | Servo Electric |
| High Light: | 10000A Auto Spot Welder,1000mm/s Spot Welder For Battery Packs,10000A Spot Welder For Battery Packs |
||
Product Description

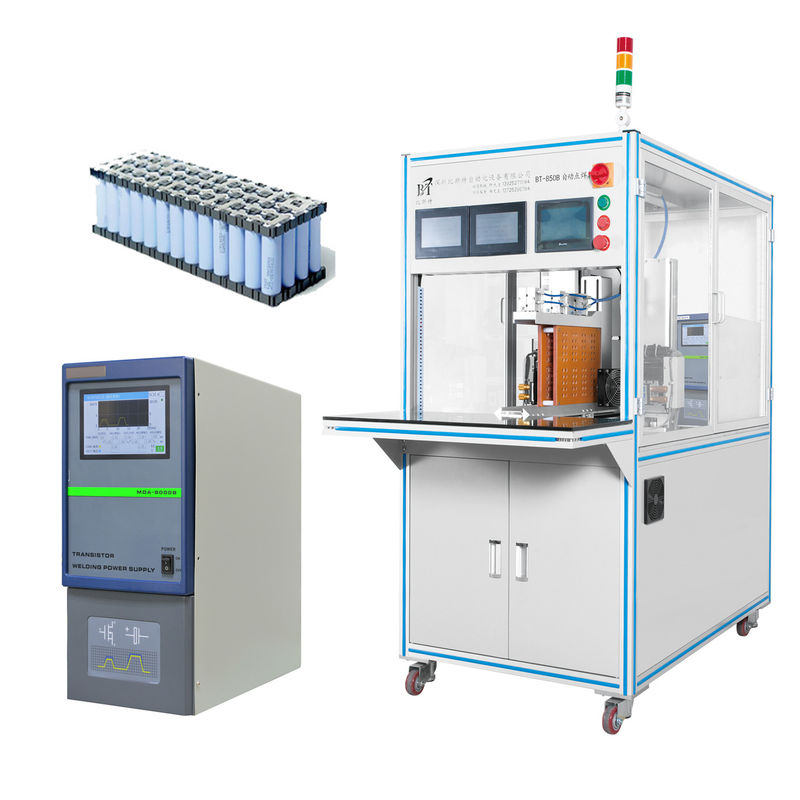

10000A Transistor Battery Spot Welding Machine For Lithium Ion Battery Pack
Intorduction:
BT-850-10000A transistor battery pack double-sided automatic spot welding machine, can be applied in the serial combination
of power battery 18650 / 26650 core, multi-and multi-series combined electric tool battery, twist car battery (1 die spot welding 6 set)
Product characteristics:
1,The name of spot welding die model is input in Chinese and English, and can be switched at any time
2,The spot welder display can be connected directly to the computer
3,The nickel belt of the welded battery adopts the molded nickel belt to reduce the waste
4,Equipment debugging is simple, easy to learn, fast model speed (0-199 group data available)
5,The warranty period of the machine is two years, and each machine is connected by the professional technical
personnel of the machine
|
SPECIFICATIONS FOR BT-850-10000A Transistor |
|
|
Application |
Battery pack welding |
|
power |
AC220 50/60hz 4KW |
|
Max Motor Speed |
1000mm/s |
|
Y-axis Travel |
200-400mm |
|
X-axis Travel |
200-600mm |
|
Air pressure |
0.4-0.8Mpa,No water, no impurities |
|
Welding power |
BT-8000B Transistor spot welding power supply,2 set |
|
User Interface |
Touch screen |
|
Control device |
7.5-inch touch screen |
|
spot welding time |
2-10ms |
|
Nickel sheet thickness |
0.1-0.3mm need slotted ;0.21-0.4mm Bump welding nickel sheet |
|
Run power |
Servo electric |
|
Welding current |
Max 10000A |
|
Battery cell range |
14430/14500/18500/18650/21700/26650/32650/32700 |
|
Productivity |
4600-5000psc/h |
|
Welding pin |
1.7mm(can used 1.5 mm, 2mm and 4mm depending on the battery) |
|
Dimensions |
L1630*W850*H1630MM |
|
Weight |
About 220kg |
