Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | BT |
| Certification: | ISO9001 |
| Model Number: | BT-850B-10000A |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 1 |
| Price: | USD 17000-24000 Set |
| Packaging Details: | Wooden case |
| Delivery Time: | 15 work days |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 50 set month |
|
Detail Information |
|||
| Welding Current: | Max 10000A | Productivity: | 4600-5000psc/h |
|---|---|---|---|
| Welding Pin: | 1.7mm（can Used 1.5 Mm, 2mm And 4mm Depending On The Battery） | Dimensions: | L1630*W850*H1630MM |
| Weight: | About 220kg | Battery Cell Range: | 14430/14500/18500/18650/21700/26650/32650/32700 |
| High Light: | 5000pcs/H Lithium Battery Spot Welding Machine,18650 Lithium Battery Spot Welding Machine,18650 Battery Spot Welder |
||
Product Description

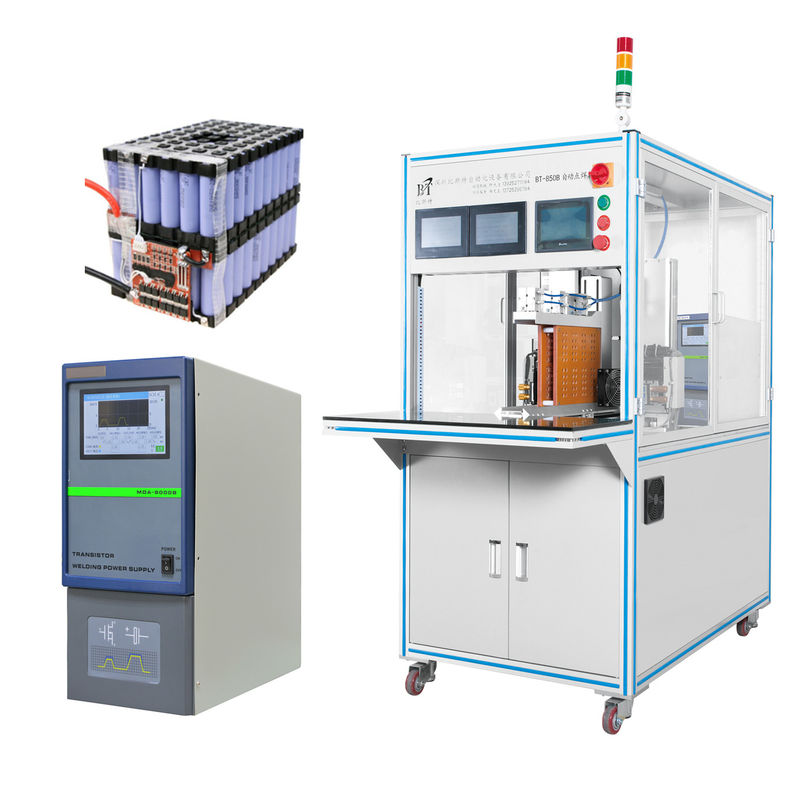

5000pcs/H 18650 Battery Spot Welder For Energy Storage Battery
Intorduction:
BT-850-10000A transistor battery pack double-sided automatic spot welding machine, using two 10000 A transistor power
supplies, can replace spot welding according to different customer needs, monitor welding current in real time, need virtual
welding or fried fire automatic shutdown alarm.
Product characteristics:
1,32 Groups of welding specifications are stored for more flexible selection and control during welding
2,The machine has the function of current deceleration and deceleration
3,With counting function, welding times can be counted, use this function, can be convenient Understand the work efficiency
4,Compared with the high-frequency spot welding power supply, the volume is greatly reduced, and the overall
equipment is light and convenient to install and use
5,With single point / continuous / seam weld welding function
|
SPECIFICATIONS FOR BT-850-10000A Transistor |
|
|
Application |
Battery pack welding |
|
power |
AC220 50/60hz 4KW |
|
Max Motor Speed |
1000mm/s |
|
Y-axis Travel |
200-400mm |
|
X-axis Travel |
200-600mm |
|
Air pressure |
0.4-0.8Mpa,No water, no impurities |
|
Welding power |
BT-8000B Transistor spot welding power supply,2 set |
|
User Interface |
Touch screen |
|
Control device |
7.5-inch touch screen |
|
spot welding time |
2-10ms |
|
Nickel sheet thickness |
0.1-0.3mm need slotted ;0.21-0.4mm Bump welding nickel sheet |
|
Run power |
Servo electric |
|
Welding current |
Max 10000A |
|
Battery cell range |
14430/14500/18500/18650/21700/26650/32650/32700 |
|
Productivity |
4600-5000psc/h |
|
Welding pin |
1.7mm(can used 1.5 mm, 2mm and 4mm depending on the battery) |
|
Dimensions |
L1630*W850*H1630MM |
|
Weight |
About 220kg |
