2KW Lithium Battery Spot Welding Machine Prismatic Cell Assembly

Product Details:
Place of Origin: China
Brand Name: BT
Certification: ISO9001
Model Number: BT-550D-5000A
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: USD 2500-3000 Set
Packaging Details: Wooden case
Delivery Time: 10 work days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 200 set month
  • Detail Information
  • Product Description

Detail Information

Spot Welding Power: BT--5000A DC Spot Weling Power Spot Welding Pin: 1.7mm(can Used 1.5 Mm, 2mm Depending On The Battery)
Travel Of Welding Head: 40-140 Adjustable Welding Current: 1000-3000A
Warranty: 2 Years Certification: ISO9001
High Light:

2KW Lithium Battery Spot Welding Machine


BT Lithium Battery Spot Welding Machine


2KW Prismatic Cell Assembly

Product Description

Polymer Cells Pneumatic DC Spot Welding Machine For Battery Production Line

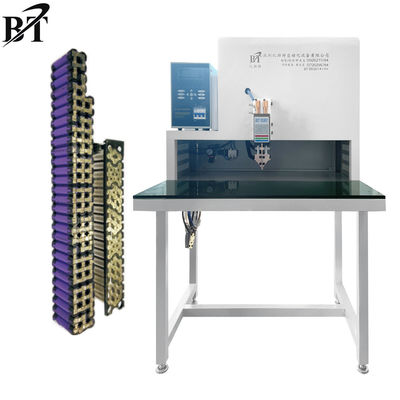

2KW Lithium Battery Spot Welding Machine Prismatic Cell Assembly 0




















BT-550D-5000A precision pneumatic spot welding machine is suitable for spot welding of electric core and

nickel strip foot, using pneumatic spot welding head




 Suitable for cylindrical core, prism core, polymer core spot welding


The stroke of the spot welding head can be adjusted according to the size of the battery to ensure the spot

     welding accuracy


Use 1.7 mm pin spot welding, a welding pin can be used for more than 3 months


the display interface is LCD display screen, real-time to see the welding current size


parameter setting interface using PVC key mask, spot welding can be adjusted at any time pre-welding current


the machine warranty for two years, if the failure of the technical staff will be handled within 24 hours


Application Cylindrical cells,prismatic cells,polymer cells
power AC220 50/60hz 2KW
Productivity 800 -1200pcs/h
Spot Welding power BT--5000A DC spot weling power
Welding out put power Max 6000A
Air pressure 0.4-0.8Mpa,No water, no impurities
Spot welding pin 1.7mm(can used 1.5 mm, 2mm depending on the battery)
Nickel sheet thickness 0.1-0.3mm need slotted ;0.21-0.4mm Bump welding nickel sheet
Spot welding platform L600*W300mm
Working way Pneumatic
Travel of welding head 40-140 Adjustable
Display interface LCD Display
Parameter panel PVC button surface mold
Pre welding current 800-2000A
Welding Time 1-10ms
Welding current 1000-3000A
Dimensions L900*W900*H1350MM
Weight About 50kg
After-sales service provided Engineers available to service machinery overseas,Video technical support,Free spare parts,Online support
Warranty 2 Years
Certification ISO9001

2KW Lithium Battery Spot Welding Machine Prismatic Cell Assembly 1

2KW Lithium Battery Spot Welding Machine Prismatic Cell Assembly 2550D.jpg 1



A: What types of machines can we make?

B: Our own R & D equipment are: Transistor spot welding power source, DC spot welding power source, automatic spot

welding machine, dynamic performance tester of power cell, high-speed mat machine, 6-21 channel automatic sorting

machine, Power Battery Performance Tester, power battery charge-discharge aging cabinet, CCD vision detector, automatic

bracket machine, automatic battery production line etc.

A: Do you support after sales service?

BYes, after purchase we will have professionals to install and train, and the warranty is two years. Exported to Europe and the

United States, Southeast Asian countries, there is a site in India

A: Is the quality of the product guaranteed?

B: Our company is a research and development, production, sales as one of the high-tech enterprises, since

its inception in 2005, has always insisted on quality first, service first business philosophy, product quality,

cost-effective. Overseas customers are also satisfied with our products, their satisfaction is our motivation

AWhat scope does the product apply to?

BCompany 11 years committed to column Battery Pack Automation Production Equipment, and column Battery Pack

Automation Production Line. Products are mainly used in digital batteries, energy storage batteries, tool batteries, power

batteries, automotive batteries, etc.

2KW Lithium Battery Spot Welding Machine Prismatic Cell Assembly 5
