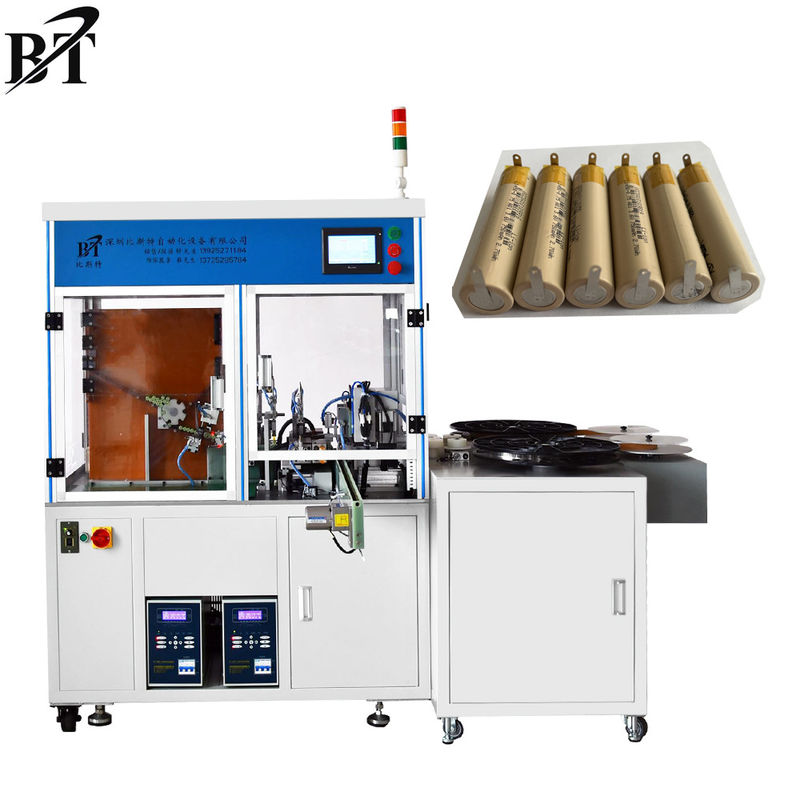

14430 Lithium Battery Making Machine Nickel Strip Cutting Lithium Spot Welder

Product Details:
Place of Origin: China
Brand Name: BT
Certification: ISO9001
Model Number: BT-1418
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: USD 24000-29000 Set
Packaging Details: Wooden case
Delivery Time: 15 work days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 30 set month
  • Detail Information
  • Product Description

Detail Information

Battery Range: 14430/14500/186500/18650/21700 Customized Power: AC220 50/60hz 8KW
Air Pressure: 0.4-0.8Mpa,No Water, No Impurities Spot Welding Pin: 1.5*100mm
Nickel Sheet Thickness: 0.08-0.15mm Nickel Sheet Max Width: Customized
High Light:

14430 Lithium Battery Making Machine

,

Nickel Strip Cutting Lithium Spot Welder

,

14430 Lithium Spot Welder

Product Description

Automatic Nickel Strip Cutting Battery Spot Welding Machine

Main function:

The cylindrical core automatically tests the voltage resistance, automatically detects the position of the text,

automatically sticks the side high temperature glue, and automatic welding


Product Description

Product characteristics:

♦ Imported Tungsten Steel Cutter, durable

Standard Internal Resistance Tester HK35615



Good uniformity of vertical position of lead-out Plate

 Automatic welding of shaped nickel plate

                                                                    BT-1418
Battery range 14430/14500/186500/18650/21700 customized
power AC220 50/60hz 8KW
Productivity About 1300 pcs/h
Spot Welding power BT--5000A DC spot weling power,2 set
Welding out put power Max 6000A
Air pressure 0.4-0.8Mpa,No water, no impurities
Spot welding pin 1.5*100mm
Nickel sheet thickness 0.08-0.15mm
Nickel sheet max width Customized
Run power 750W Servo control
Control device PLC touch screen control
High temperature glue width 10mm
High temperature glue feeding length 10-20mm
Nickel sheet thickness exposed length ≥2.5mm
Nickel sheet max outer diameter 500mm
Dimensions L2250*W1700*H1820MM
Weight About 50kg
After-sales service provided Engineers available to service machinery overseas,Video technical support,Free spare parts,Online support
Warranty 2 Years
Certification ISO9001

14430 Lithium Battery Making Machine Nickel Strip Cutting Lithium Spot Welder 1-2.jpg2.jpg3.jpg

Company Information

                                                                                       FAQ

A: How can i install and operate the machine by muself?

B: Our system R&D based on intearated development viewwhen you get the machine, just need to connect it with the

   electrical power, then machine can be working. because the English software were installed in thismachine.what you

  need to do is only learning the software usage,and the complete English user manual will be coning to you with the machine.

A: Do you support after sales service?

BYes, after purchase we will have professionals to install and train, and the warranty is two years. Exported to Europe

and the United States, Southeast Asian countries, there is a site in India

A: Is the quality of the product guaranteed?

B: Our company is a research and development, production, sales as one of the high-tech enterprises,

since its inception in 2005, has always insisted on quality first, service first business philosophy, product

quality, cost-effective. Overseas customers are also satisfied with our products, their satisfaction is our motivation

AWhat scope does the product apply to?

BCompany 13 years committed to column Battery Pack Automation Production Equipment, and column Battery

Pack Automation Production Line. Products are mainly used in digital batteries, energy storage batteries, tool batteries,

power batteries, automotive batteries, etc.
