50/60hz Battery Cell Spot Welder High Temperature Adhesive Affixed Testing

Product Details:
Place of Origin: China
Brand Name: BT
Certification: ISO9001
Model Number: BT-1418
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: USD 24000-29000 Set
Packaging Details: Wooden case
Delivery Time: 15 work days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 30 set month
  • Detail Information
  • Product Description

Detail Information

Spot Welding Power: BT--5000A DC Spot Weling Power,2 Set Air Pressure: 0.4-0.8Mpa,No Water, No Impurities
Welding Out Put Power: Max 6000A Spot Welding Pin: 1.5*100mm
Nickel Sheet Thickness: 0.08-0.15mm Run Power: 750W Servo Control
High Light:

60hz Battery Cell Spot Welder


Battery Cell Spot Welder Affixed Testing


6000A Battery Spot Welder

Product Description

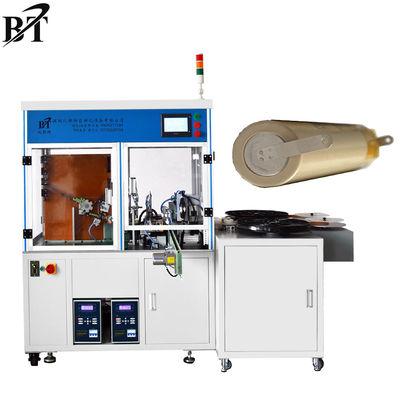

Core IR tester text position high-temperature adhesive affixed testing spot welding machine

Main function:

BT-1418 single node automatic spot welding machine. It is mainly used for testing the inner resistance of the voltage

of the core, testing the position of the text, high temperature glue on the side, and spot welding machine of the core


Product Description

Product characteristics:

 Equipment debugging is simple, easy to learn, easy to understand with its own fault alarm

Automatic welding, welding spot accuracy

Real-time welding current monitoring, false welding or fire alarm automatic shutdown

The use of hopper feeding, one-time can put 500PCS core


Battery range 14430/14500/186500/18650/21700 customized
power AC220 50/60hz 8KW
Productivity About 1300pcs/h
Spot Welding power BT--5000A DC spot weling power,2 set
Welding out put power Max 6000A
Air pressure 0.4-0.8Mpa,No water, no impurities
Spot welding pin 1.5*100mm
Nickel sheet thickness 0.08-0.15mm
Nickel sheet max width Customized
Run power 750W Servo control
Control device PLC touch screen control
High temperature glue width 10mm
High temperature glue feeding length 10-20mm
Nickel sheet thickness exposed length ≥2.5mm
Nickel sheet max outer diameter 500mm
Dimensions L2250*W1700*H1820MM
Weight About 50kg
After-sales service provided Engineers available to service machinery overseas,Video technical support,Free spare parts,Online support
Warranty 2 Years
Certification ISO9001

50/60hz Battery Cell Spot Welder High Temperature Adhesive Affixed Testing 1-2.jpg2.jpg3.jpg

Company Information


A: How can i install and operate the machine by muself?

B: Our system R&D based on intearated development viewwhen you get the machine, just need to connect it with the

   electrical power, then machine can be working. because the English software were installed in thismachine.what you

  need to do is only learning the software usage,and the complete English user manual will be coning to you with the machine.

A: Do you support after sales service?

BYes, after purchase we will have professionals to install and train, and the warranty is two years. Exported to Europe

and the United States, Southeast Asian countries, there is a site in India

A: How to get technical support after purchasing?

B: Our factory provide online technical supportin English,you can easy catch us online by SKYPE,WECHAT WAHTSAPP

or Email, if you need any remote assistant support,then we will support you though TeamViewer software.

AWhat scope does the product apply to?

BCompany 13 years committed to column Battery Pack Automation Production Equipment, and column Battery

Pack Automation Production Line. Products are mainly used in digital batteries, energy storage batteries, tool batteries,

power batteries, automotive batteries, etc.
