Product Details:
|
|
Place of Origin: | China |
---|---|
Brand Name: | BT |
Certification: | ISO9001 |
Model Number: | BT-450 |
Payment & Shipping Terms:
|
|
Minimum Order Quantity: | 1 |
Price: | USD 7500-10000 Set |
Packaging Details: | Wooden case |
Delivery Time: | 15 work days |
Payment Terms: | L/C, T/T, Western Union, MoneyGram |
Supply Ability: | 30 set month |
Detail Information |
|||
Battery Cell Range: | 14430/14500/18500/18650/21700/26650/26700/32650/32700 | Insulating Paper Thickness: | 0.1mm-0.3mm |
---|---|---|---|
Insulating Paper Width: | Inner Diameter 75mm,outer Diameter 350mm | Pad Power: | 400W Variable Frequency Motor Debugging, Set With Buffer Power To Ensure That No Damage To The Core |
Control Devices: | 7.5-inch Touch Screen, 2-axis Stepper Motor Design, 42-point PLC Programmer | Dimensions: | L1420MM*W950MM*H1620MM |
High Light: | 26650 Battery Automatic Sticker Machine,26650 Battery Pack Assembly Line,14430 Battery Pack Assembly Line |
Product Description

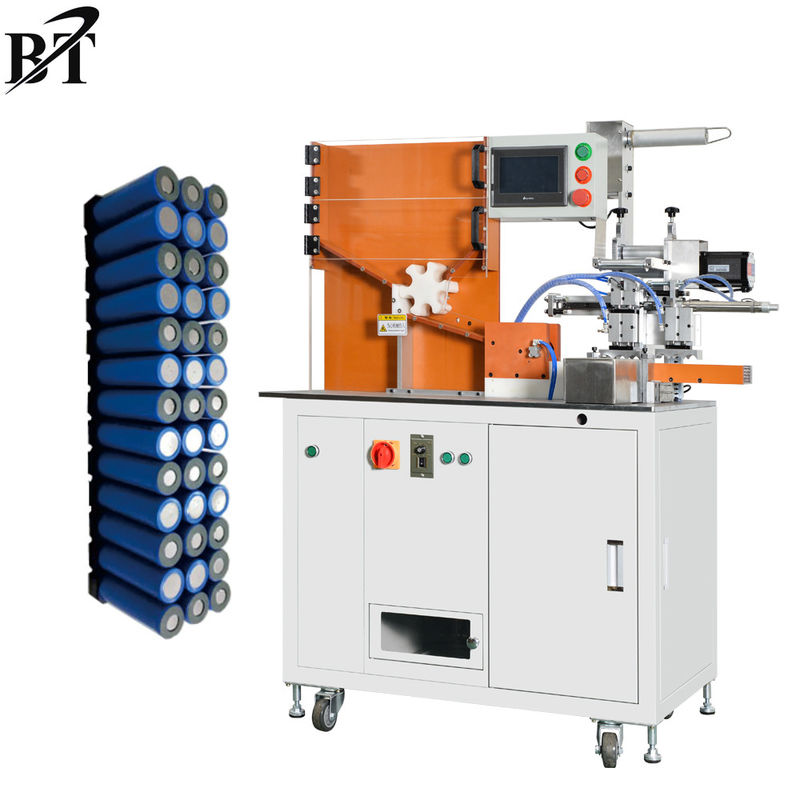

26650 Automatic Insulation Paper Sticking Machine For Battery Making Machine
Main function:
BT-450 automatic insulating paper paste machine, mainly used for the cylindrical core positive electrode insulating
paper paste, can be connected to the core separator, for the battery pack production line equipment
Product characteristics:
♦ Equipment debugging is simple, easy to understand, fixed parameters, equipped with manual operation and
single-step operation of the automatic operation program
♦ The equipment has its own fault alarm and clear the fault according to the prompt
♦ The aste effect is consistent, solid and beautiful
♦ The control device uses a 7.5 inch touch screen, 2 axis stepping motor design, 42 point PLC programmer
Power | AC220V 50/60HZ 1.6KW |
Air pressure | 0.4-0.8mpa |
battery cell range | 14430/14500/18500/18650/21700/26650/26700/32650/32700 |
Insulating paper width |
100mm plus or minus 1mm,inner diameter of coil 75mm, out diameter of coil 350mm |
Insulating paper thickness | 0.1-0.3mm |
Efficiency | 4500-5000pcs/h |
Pad power | 400W variable frequency motor debugging, set with buffer power to ensure that no damage to the core |
Control Devices | 7.5-inch touch screen, 2-axis stepper motor design, 42-point PLC programmer |
Dimensions | L1420MM*W950MM*H1620MM |
Weight | About 180KG |
After-sales service provided | Engineers available to service machinery overseas,Video technical support,Free spare parts,Online support |
Warranty | 2 Years |
Certification | ISO9001 |
FAQ
A:How can i install and operate the machine by muself?
B:Our system R&D based on intearated development viewwhen you get the machine, just need to connect it with the
electrical power, then machine can be working. because the English software were installed in thismachine.what you
need to do is only learning the software usage,and the complete English user manual will be coning to you with the machine.
A:How to order?
B:Please send us your purchase order by email or call us salesor we can make the proforma invoice under your request.
We need to know the following information for your order before sending your PI.
A:What's the warranty for the items?
B:We are very confident in our productsand we pack them very well, so usually you will receive your order in good condition.
any quality issue,we will deal with it immediately.Warranty for equipment is a year (24months) if the equipment parts are damaged
due to non human factors within one year, we will provide replacement parts free of charge.
A:What scope does the product apply to?
B:Company 13 years committed to column Battery Pack Automation Production Equipment, and column Battery
Pack Automation Production Line. Products are mainly used in digital batteries, energy storage batteries, tool batteries,
power batteries, automotive batteries, etc.
