Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | BT |
| Certification: | ISO9001 |
| Model Number: | BT-4518 |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 1 set |
| Price: | USD 14000-24000 set |
| Packaging Details: | Wooden case |
| Delivery Time: | 25 work day |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 20 set month |
|
Detail Information |
|||
| Input Power: | AC220V 50/60HZ 4.2KW | Air Pressure: | 0.4-0.8Mpa,No Water, No Impurities |
|---|---|---|---|
| Insulation Paper Thickness: | 01mm-0.3mm | Internal Resistance Setting: | 000.00mΩ-999.99mΩ |
| Channel: | 10OK,1NG | Run Power: | 750W Servo Electric |
| Test Mode: | 4-wire System | Voltage Setting: | 0.00000V-6.0000V |
| High Light: | 18650 Cylindrical Battery Pasting Machine,Battery Pasting Machine AC220V,18650 Automatic Paper Sorter |
||
Product Description

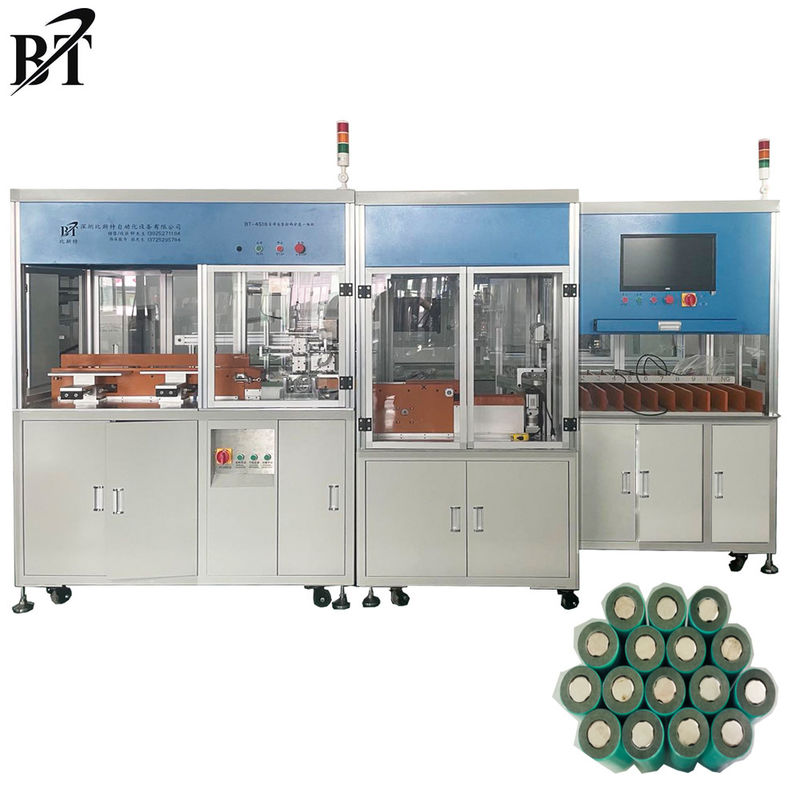

18650 Cylindrical Cell Automatically Paste Insulation Paper And Sorting Machine
Introduction:
BT-4518 cylindrical batteries automatic stick insulation paper and sorting machine,It is mainly used
for the positive electrode stick circular insulation of the cylindrical core and the voltage internal resistance
of the test core
Product characteristics:
♦ Insulated highland barley paper is rolled up to reduce waste and save cost
♦ Double manipulator take and release the battery to ensure that the battery is transmitted freely from the
channel
♦ Production quantity is collected automatically to show the current production efficiency
♦ The machine is built-in computer screen and data can be stored on the computer or on a U disk
♦ Optional distribution core dynamic tester, actually reflects the core quality and load
| BT-4518 | |
| Input Power | AC220V 50/60HZ 4.2KW |
| Cell range | 14430/1450018500/18650/21700/26650/327000 |
| Air pressure | 0.4-0.8Mpa,No water, no impurities |
| IR tester | HK3560 |
| Optional IR tester | HIOKI3561/HIOKI3562/HK3561 |
| Control device | PLC touch screen control |
| Run power | 750W Servo electric |
| Insulation paper Width | 100mm plus or minus 1mm,inner diameter of coil 75mm,out diameter of diameter 350 mm |
| Insulation paper thickness | 01mm-0.3mm |
| Voltage setting | 0.00000V-6.0000V |
| Internal resistance setting | 000.00mΩ-999.99mΩ |
| Certification | ISO9001 |
| Productivity | About 4500 pcs/h |
| Channel | 10OK,1NG |
| Test data | Store with U disk |
| Communication interface | RS485 |
| Test mode | 4-wire system |
| Test pin | DZ100-214A30G |
| After-sales service provided | Engineers available to service machinery overseas,Video technical support,Free spare parts,Online support |
| Warranty | 2 Years |
FAQ
A:How can i install and operate the machine by myself?
B:Our system R&D based on intearated development viewwhen you get the machine, just need to connect it with the
electrical power, then machine can be working. because the English software were installed in thismachine.what you
need to do is only learning the software usage,and the complete English user manual will be coning to you with the machine.
A:How to order?
B:Please send us your purchase order by email or call us salesor we can make the proforma invoice under your
request.We need to know the following information for your order before sending your PI.
A:What scope does the product apply to?
B:Company 13 years committed to column Battery Pack Automation Production Equipment, and column
Battery Pack Automation Production Line. Products are mainly used in digital batteries, energy storage
batteries, tool batteries,power batteries, automotive batteries, etc.
