Pairing Reinspection Lithium Ion Battery Testing Equipment Pneumatic Operating

Product Details:
Place of Origin: China
Brand Name: BT
Certification: ISO9001
Model Number: BT-2024A
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: USD 13000-24000 Set
Packaging Details: Wooden case
Delivery Time: 30 work days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 30 set month
  • Detail Information
  • Product Description

Detail Information

Control Device: PLC Industrial PC IR Tester: HK3562(1-18)
Test Mode: 4-wire System Test Pin: DZ100-214A30G
Dimensions: L2070MM*W1120MM*H1710MM Weight: About 350KG
High Light:

Reinspection Lithium Ion Battery Testing Equipment


Pairing Lithium Ion Battery Testing Equipment


Pneumatic Lithium Battery Testing Equipment

Product Description

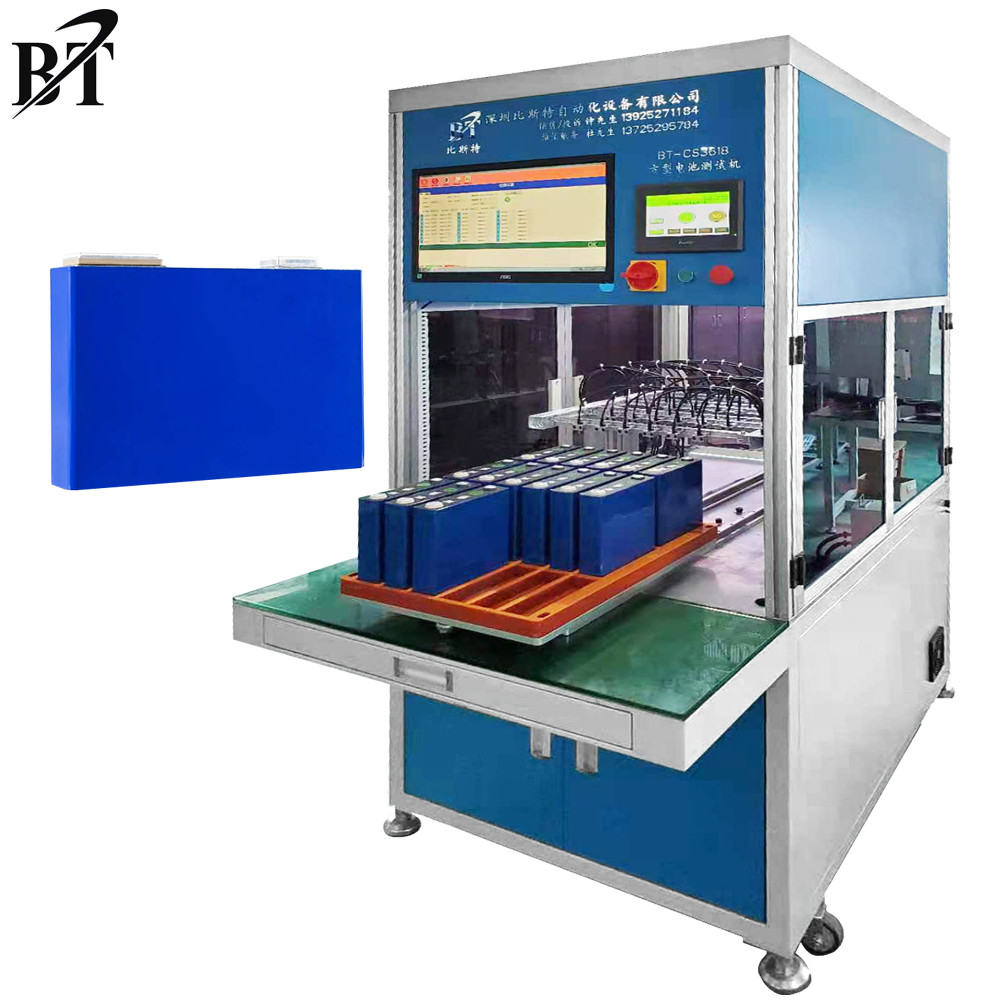

Customized Prism Battery Pack Core Matching And Re-Inspection Machine




Main function:

BT-2021A prism core pairing reinspection machine, the main function is the whole set of cores has been paired, put into the machine at one time, and secondary pairing re-inspection


Product characteristics:


Commissioning equipment is simple and easy to understand
The manually paired battery pack is placed into the mold for the pairing inspection of the entire battery pack

Use pneumatic operating power to ensure that there must be filters when using the gas source to ensure that water is free and impurities
The voltage internal resistance setting uses the HK3562, to test the 1-18 string battery pack



Suitable test instrument

1-18 string battery pack

Run power


Product name

Prism cell testing machine

Input Power

AC220V  50/60HZ  1.2KW


Prism core test Analyzer

Air pressure

0.4-0.8Mpa,No water, no impurities

Control device

PLC industrial PC

IR tester


Test mode

4-wire system

Test pin





About 350KG

After-sales service provided

Engineers available to service machinery overseas,Video technical support,Free spare parts,Online support


2 Years







A:How can i install and operate the machine by myself?

B:Our system R&D based on intearated development viewwhen you get the machine, just need to connect it with the electrical power, then machine can be working. because the English software were installed in thismachine.what you need to do is only learning the software usage,and the complete English user manual will be coning to you with the machine.

A:How to order?

B:Please send us your purchase order by email or call us salesor we can make the proforma invoice under your request.We need to know the following information for your order before sending your PI.

A:What's the warranty for the items?

B:We are very confident in our productsand we pack them very well, so usually you will receive your order in good condition.any quality issue,we will deal with it immediately.Warranty for equipment is a year (24months) if the equipment parts are damageddue to non human factors within one year, we will provide replacement parts free of charge.

A:What scope does the product apply to?

B:Company 13 years committed to column Battery Pack Automation Production Equipment, and column Battery Pack Automation Production Line. Products are mainly used in digital batteries, energy storage batteries, tool batteries,power batteries, automotive batteries, etc.
