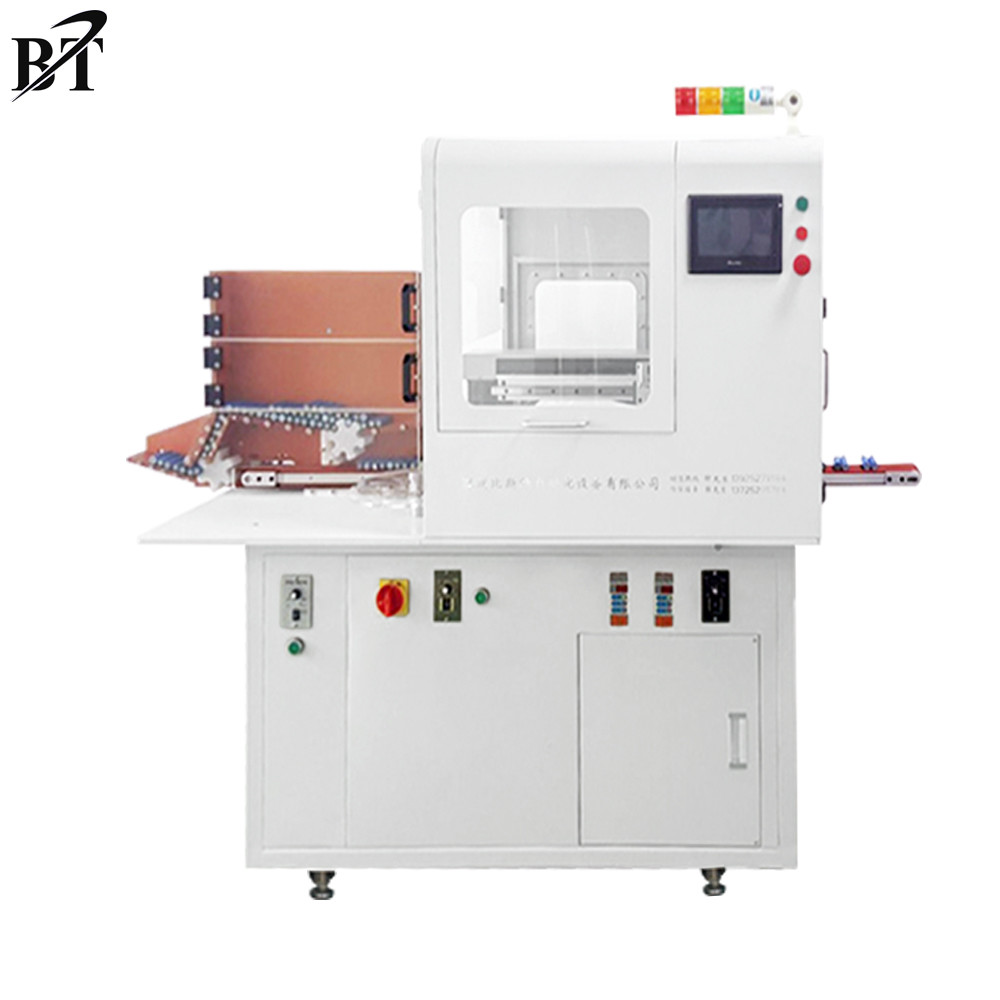

Fully Automatic Lithium Ion Battery Spot Welding Machine Mobile Power Supply

Product Details:
Place of Origin: China
Brand Name: BT
Certification: ISO9001
Model Number: BT-280Y/290Y
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: USD 12000-16000 Set
Packaging Details: Wooden case
Delivery Time: 20 work days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 50 set month
  • Detail Information
  • Product Description

Detail Information

Application: Multiple Batteries Spot Weld In Series Or In Parallel Air Pressure: 0.4-0.8Mpa,No Water, No Impurities
Welding Output Power: Max 16KA Input Power: AC 200V 50/60HZ 5KW
Welding Power: BT-5550D-60 Spot Welding Power Supply,2 Set Productivity: About 2200psc/h
Number Of Spot-welding Batteries: 1-10pcs Customized Nickel Sheet Thickness: 0.08MM---0.15MM
Nickel Sheet Width: 4-10mm Customized Max Outer Diameter Nickel Sheet: 300MM
Welding Pin: 1.5*100mm Battery Cell Range: 14430/14500/18500/18650/21700/26650/32650/32700
Dimensions: L1720*W700*H360MM Weight: About 220kg
High Light:

Lithium Ion Battery Spot Welding Machine


Automatic Lithium Battery Spot Welding Machine

Product Description

Mobile Power Supply Fully Automatic battery Spot Welding Machine

banner .jpg


Main functions:

Column core automatic welding, can be combined in parallel or in series
►  Use coiled nickel sheet and automatically cut according to the set length


 Product characteristics:

♦ Nickel belt adopts disk nickel belt to reduce waste
Equipment debugging is simple, easy to learn and easy to understand, change the model is generally set with 3 parameters
The voltage internal resistance test function can be selected
With hopper feeding, 500PCS cores
It can be used in series and parallel
The finished output area length of 500MM, products can flow directly to the production line to reduce manual handling
The equipment has its own fault alarm and clear the fault according to the prompt
Nickel sheet shaft adopts stepping motor feeding, precise digital control, small error and high precision
Parallel combination of electric core realizes continuous and automatic welding
1-10 cores in series or in parallel, with extended nickel band before and after the battery


Application Multiple batteries spot weld in series or in parallel
Air pressure 0.4-0.8Mpa,No water, no impurities
Welding output power Max 16KA
Control device PLC touch screen control
Input power AC 200V 50/60HZ 5KW
Welding power BT-5550D-60 spot welding power supply,2 set
Run power 750W Servo electric
Productivity About 2200psc/h
Number of spot-welding batteries 1-10pcs Customized
Nickel sheet thickness 0.08MM---0.15MM
Nickel sheet width 4-10mm Customized
Max outer diameter Nickel sheet 300MM
Welding pin 1.5*100mm
Battery cell range 14430/14500/18500/18650/21700/26650/32650/32700
Dimensions L1720*W700*H360MM
Weight About 220kg
warranty 2 years





 1Fully Automatic Lithium Ion Battery Spot Welding Machine Mobile Power Supply 4




A: What types of machines can we make?

B: Our own R & D equipment are: Transistor spot welding power source, DC spot welding power source, automatic spot welding machine, dynamic performance tester of power cell, high-speed mat machine, 6-21 channel automatic sorting machine, Power Battery Performance Tester, power battery charge-discharge aging cabinet, CCD vision detector, automatic bracket machine, automatic battery production line etc.

A: Do you support after sales service?

BYes, after purchase we will have professionals to install and train, and the warranty is two years. Exported to Europe and the United States, Southeast Asian countries, there is a site in India

A: Is the quality of the product guaranteed?

B: Our company is a research and development, production, sales as one of the high-tech enterprises, since its inception in 2005, has always insisted on quality first, service first business philosophy, product quality, cost-effective. Overseas customers are also satisfied with our products, their satisfaction is our motivation

A:What scope does the product apply to?

BCompany 11 years committed to column Battery Pack Automation Production Equipment, and column Battery Pack Automation Production Line. Products are mainly used in digital batteries, energy storage batteries, tool batteries, power batteries, automotive batteries, etc.
