10000A Transistor Car Battery Spot Welder Pneumatic Spot Welding Machine

Product Details:
Place of Origin: China
Brand Name: BT
Certification: ISO9001
Model Number: BT-550D-8000B
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: USD 3100-4600 Set
Packaging Details: Wooden case
Delivery Time: 10 work days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 200 set month
  • Detail Information
  • Product Description

Detail Information

Power At 0.1% Duty Cycle: SQ1=9KVA Power At 50% Duty Cycle: S50=0.36KVA
Power At 100% Duty Cycle: S100=0.25KVA Communication Interface: RS485 RS232
Canonical Storage Quantity: 16 Group Cooling Mode: Forced Air Cooling
High Light:

10000A Car Battery Spot Welder

,

RS485 Car Battery Spot Welder

,

10000A Pneumatic Spot Welding Machine

Product Description

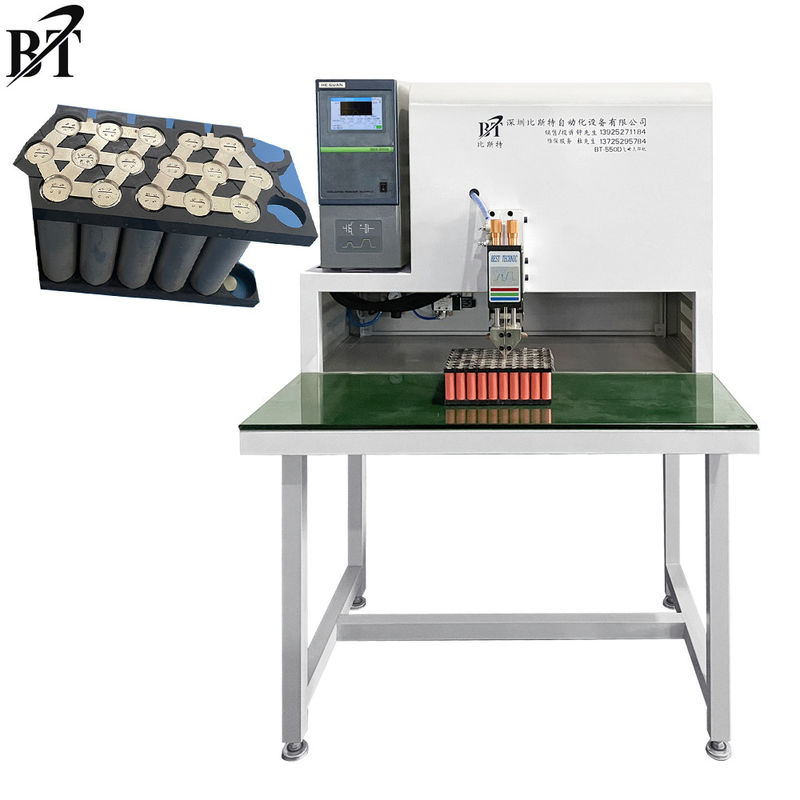

Max 10000A Transistor Spot Welding For E-Vehicles Battery Pack



bt-550d-8000b .jpg

Main Function:



Cylindrical battery, Prism battery, Polymer battery Pneumtic spot welding with  nickel sheet



Welding range:
Power battery, digital battery, NiMH nickel-nickel chromium battery, electronic rotor, electronic and electrical accessories, etc



Feature:



Spot welding data acquisition can collect welding data via RS485 or RS232


External industrial controller / PLC control and cooperate with automatic machine production


During the operation, if the controller detects the situation abnormality, it will automatically turn off the output and alarm the prompt



The control signal adopts the foot stepping switch or the external control


The equipment has its own fault alarm and clear the fault according to the prompt


The machine warranty period is two years, and the faulty technician will handle it within 24 hours





                                       BT-550D-8000B Transistor spot welding machine
power AC220V 50/60HZ 0.6KW
Spot welding power MDA-8000B Transistor spot welding power
Welding output power Max 10000
Out Voltage 1-6V DC
Welding pin 1.7*100mm
Nickel sheet thickness

0.08-0.2mm Nickel-plated or pure nickel

0.21-0.4mm Nickels require bump welding

Welding platform L600MM*W300MM
Working way Pneumatic welding
Spot weld head stroke 20-140 Adjustable
Spot Welding pin buffer stroke 10mm
Spot Welding pin cushioning pressure 0.5-5.5kg adjustable
Interface Display

5 inch DMT80480T050-16WT touch screen

7 inch DMT80480T070-18WT touch screen

Parameter setting Touch way
Power at 0.1% duty cycle SQ1=9KVA
Power at 50% duty cycle S50=0.36KVA
Power at 100% duty cycle S100=0.25KVA
Communication interface RS485 RS232
Canonical storage quantity 16 Group
Cooling mode Forced Air Cooling
Relative temperature -10℃~55℃
Dimensions L900*W900*H1350mm
Weight About 60KG



            .jpg

                    .jpg



    Use the BT independently developed Max 10000A Transistor spot welding power supply




                                                             FAQ

A: How can i install and operate the machine by myself?

B: Our system R&D based on intearated development viewwhen you get the machine, just need to connect it with the electrical power, then machine can be working. because the English software were installed in thismachine.what you need to do is only learning the software usage,and the complete English user manual will be coning to you with the machine.

A: How to order?

BPlease send us your purchase order by email or call us salesor we can make the proforma invoice under your request.We need to know the following information for your order before sending your PI.

A: What's the warranty for the items?

B: We are very confident in our productsand we pack them very well, so usually you will receive your order in good condition.any quality issue,we will deal with it immediately.Warranty for equipment is a year (24months) if the equipment parts are damageddue to non human factors within one year, we will provide replacement parts free of charge.

AWhat scope does the product apply to?

BCompany 13 years committed to column Battery Pack Automation Production Equipment, and column Battery Pack Automation Production Line. Products are mainly used in digital batteries, energy storage batteries, tool batteries,power batteries, automotive batteries, etc.
