Automatic Single Side Battery Pack Spot Welder with High Efficiency

Product Details:
Place of Origin: China
Brand Name: BT
Certification: ISO9001
Model Number: BT-960
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: USD 8500-15000/PCS
Packaging Details: Wooden box
Delivery Time: 15 work days
Payment Terms: T/T
Supply Ability: 100 SETS PER Month
  • Detail Information
  • Product Description

Detail Information

Power: AC380V 50/60HZ 4KW Air Pressure: 0.4-0.8Mpa
Welding Current: 10000A Productivity: 2000PCS/H
X Axis: 200-450mm Y Axis: 200-300mm
Nickel Sheet: 0.1-0.5mm Dimension: L900*W900*H1630MM
Highlight:

Single Side Battery Pack Spot Welder

,

2000PCS/H Battery Pack Spot Welder

,

0.8Mpa Lithium Battery Spot Welding Machine

Product Description


Product Application:

BT-960 is a standard singel-side automatic spot welding machine ,it no welding head rotation function, and BT-960XZ with welding head rotation function.Suitable for 14500 / 18500 / 18650 / 18730 / 21700 / 26650 / 32700 multi-parallel multi-series combination.It can be used in electric tool battery, torsion car battery, Energy Storage Battery Pack, Scooter Electric Vehicle Battery, etc.

BT-960/960XZ single-side automatic spot welding machine

for lithium-ion battery sopt welding

SPECIFICATIONS FOR BT-960/960XZ
BT-960 without welding head rotation function
BT-960XZ with welding head rotation function
Y-axis Travel 0-450MM(Can be customized)
x-axis Travel 0-350mm(Can be customized)
Spot Welding Speed 2-10s
Production Efficiency 2000-2500PCS/H
plate thickness 0.1 mml-0.3 mm
Air pressure 0.4-0.8Mpa,No water, no impurities

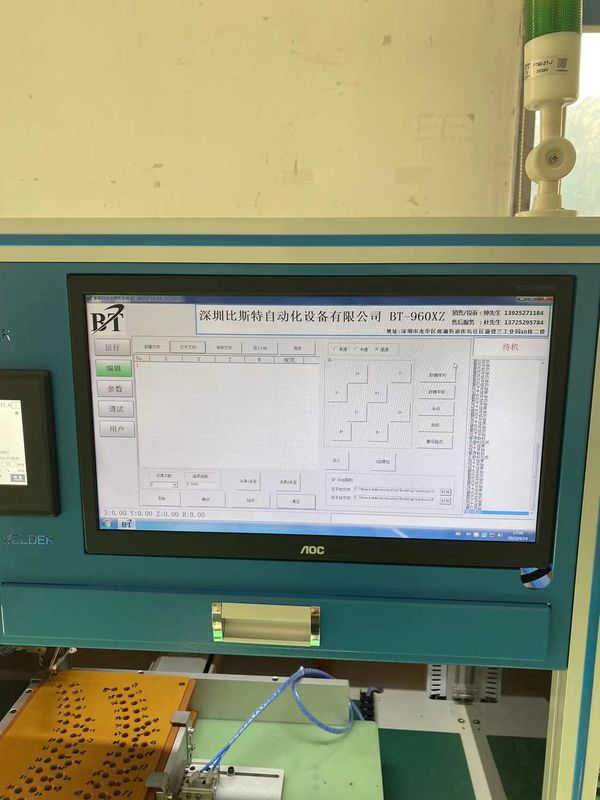

Display Interface 7-inch color touch screen, Chinese and English display
Dimensions L900*W900*H1730MM
Weight 200KG

1

Automatic Single Side Battery Pack Spot Welder with High Efficiency 2











850.jpg850-1.jpg BT-850.jpg



Company Information

_20200402112042_04



Our Services

_03

Packaging & Shipping

_20200414160131

FAQ



FAQ

A:How do I confirm that you are the manufacturer?

B:1)Clear front desk photo with our factory name.

  1. Video calls during working hours, no advance booking is required.
  2. Any time agent visit factory,no advance booking is required.
  3. Inquire production progress at any time, provide photos and videos, etc.
  4. Professional engineers solving after sale service problems.

A:What types of machines can we make?

B:All kinds of battery assembly machines.Cell testing,insulation paper sticking,sorting,welding,testing,aging.

For cylindrical/prismatic/polymer cells,manual and automatic,single machine and production line.



A:Can you help me to set up a plant?

B:Yes,please provide your raw materials and products details,your requirements about efficiency,your budget,we will send a plan to you.If you need we can also introduce some suppliers of raw materials to you.



A:What if the machine parameters you showed are different from what I need?

B:Please send your requirement details to us.As a manufacturer,most of our machines are customized.We’re sure that we can fix your requirements.



A:Do you support after sales service?

B:Yes, after purchase we will have professionals to install and train, and the warranty is two years. Exported to Europe and the

United States, Southeast Asian countries, there is a site in India



A:How can we solve machine problems?

B: Factory advantages,we have engineers and we produce the machines.

1)We will arrange an engineer to communicate with you when we get your message.He will guide you to solve the problem by video call or messages.

2)If the problem was caused by component damage,we will send a new component to you.After you get it,we’ll guide you on the video call about how to install it.
