|Place of Origin:||China|
Payment & Shipping Terms:
|Minimum Order Quantity:||1set|
|Price:||USD 17000-24000 USD|
|Packaging Details:||Wooden box|
|Delivery Time:||30 work days|
|Supply Ability:||100 SETS PER Month|
|Power:||AC220V 50/60HZ 4KW||Air Pressure:||0.4-0.8Mpa|
|Welding Output Current:||Max 10000A||Cell Type:||14430/18650/21700/26650/32700|
|Productivity:||4000-5000PCS/H||Maximum Stroke:||X:200-600mm Y:200-400mm|
AC220V Spot Welding Machine,
10000A Transistor Spot Welding Machine,
14430 Battery Spot Welding Machine

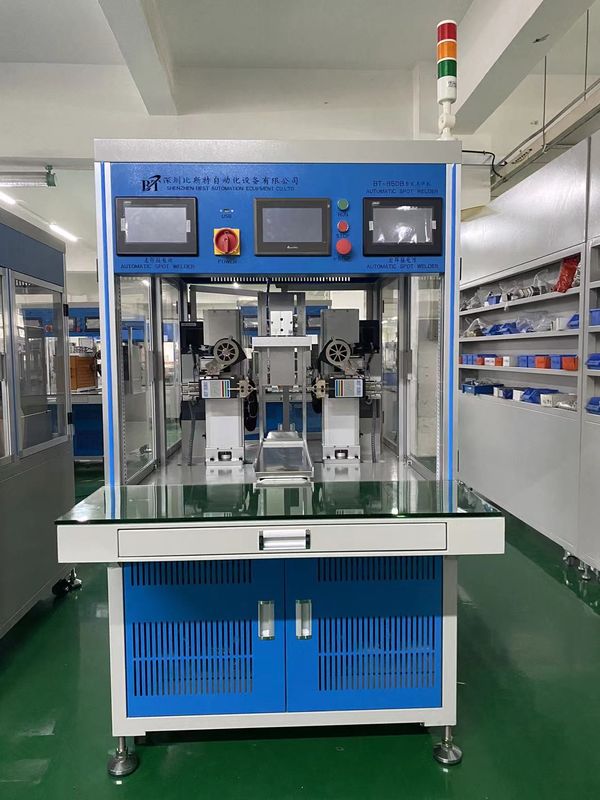

BT-850B-10000A Automatic Lithium Ion Battery Pack Double Sides Spot Welding Machine With 10000A Transistor
BT-850B-10000A Automatic Lithium Ion Battery Pack Double Sides Spot Welding Machine With 10000A Transistor is a high efficiency welding machine,which is used for car battery/power battery/storage battery pack welding.The current could be 10000A at most,so it could deal with all kinds of cylindrical cells welding condition.
Advantages of equipment
1,BT-850B-10000A Automatic Lithium Ion Battery Pack Double Sides Spot Welding Machine With 10000A Transistor is made of aluminum alloy and sheetmetal structure, which is firm, not easy to loose and ensures the quality
2,Suitable for automatic spot welding of large batch of battery pack
3,The spot welding effect is stable and guaranteed
4,High welding efficiency, take 18650 as an example:about 4000PCS-5000PCS Cells/H
5 ,The spot welding die is equipped with anti-stuffiness device, which can be adjusted and operated by common staff
|SPECIFICATIONS FOR BT-850-10000A Transistor|
|Application||Battery pack welding|
|power||AC220V 50/60hz 4KW|
|Max Motor Speed||1000mm/s|
|Air pressure||0.4-0.8Mpa,No water, no impurities|
|Welding power||BT-8000B Transistor spot welding power supply,2 set|
|User Interface||Touch screen|
|Control device||7.5-inch touch screen|
|spot welding time||2-10ms|
|Nickel sheet thickness||0.1-0.3mm need slotted ;0.21-0.4mm Bump welding nickel sheet|
|Run power||Servo electric|
|Welding current||Max 10000A|
|Battery cell range||14430/14500/18500/18650/21700/26650/32650/32700|
|Welding pin||1.7mm(can used 1.5 mm, 2mm and 4mm depending on the battery)|
A:How do I confirm that you are the manufacturer?
B:1)Clear front desk photo with our factory name.
2)Video calls during working hours, no advance booking is required.
3)Any time agent visit factory,no advance booking is required.
4)Inquire production progress at any time, provide photos and videos, etc.
5)Professional engineers solving after sale service problems.
A:Do you support after sales service?
B:Yes, after purchase BT-850B-10000A Automatic Lithium Ion Battery Pack Double Sides Spot Welding Machine With 10000A Transistor we will have professionals to install and train, and the warranty is two years. Exported to Europe and the United States, Southeast Asian countries, there is a site in India
A:How can we solve machine problems?
B: Factory advantages,we have engineers and we produce the machines.
1)We will arrange an engineer to communicate with you when we get your message.He will guide you to solve the problem by video call or messages.
2)If the problem was caused by component damage,we will send a new component to you.After you get it,we’ll guide you on the video call about how to install it.
A:Is the quality of the product guaranteed?
B:Our company is a research and development, production, sales as one of the high-tech enterprises, since its inception in 2005, has always insisted on quality first, service first business philosophy, product quality, cost-effective. Overseas customers are also satisfied with our products, their satisfaction is our motivation
A:What scope does the product apply to?
B:Company 11 years committed to column Battery Pack Automation Production Equipment, and column Battery Pack Automation Production Line. Products are mainly used in digital batteries, energy storage batteries, tool batteries, power batteries, automotive batteries, etc.
