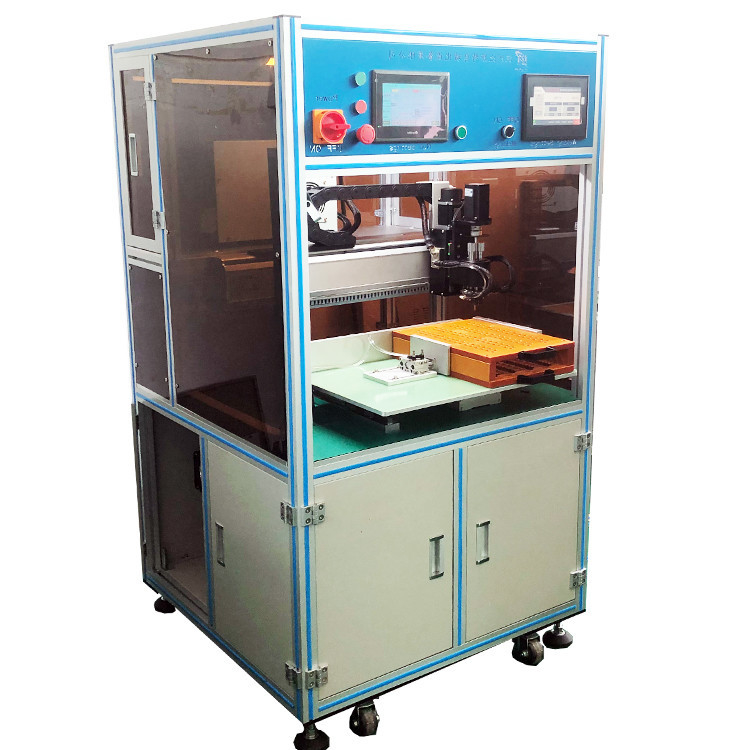

8000A Lithium Spot Welder , Single Side Spot Welding Machine

Product Details:
Place of Origin: China
Brand Name: BT
Certification: ISO9001
Model Number: BT-960/960XZ
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: USD 10000-14000 Set
Packaging Details: Wooden case
Delivery Time: 15 work days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 50 set month
  • Detail Information
  • Product Description

Detail Information

Welding Current: Max 10000A Battery Cell Range: 14500/18500/18650/21700/26650/32650/32700
Productivity: About 2000psc/h Welding Pin: 1.7mm(can Used 1.5 Mm, 2mm And 4mm Depending On The Battery)
Dimensions: L900*W900*H1630MM Control Device: 7-inch Touch Screen
High Light:

Lithium Spot Welder 1.7mm


Single Side Lithium Spot Welder


7 Inch Spot Welding Machine

Product Description

Automatic 8000A Single Side Automatic Spot Welding Machine For Ev Battery


Description Of Battery Spot Welding Machine
Spot Welder Machine battery assembly welding power source is used the latest welding technology "polarity switching" welding way, so far it is the advanced level high performance inverter resistance welding machine, it is special designed for the production of high-end mobile phone batteries, power battery, digital battery, mobile power battery, nickel metal hydride, nickel cadmium cell.



Main functions:

Cylindrical single-sided automatic welding of the cylindrical cells

The cylindrical battery pack is automatically welded with BMS PCB nickel pad


 Product characteristics:


Spot weld data 0-199 group data is available
A set of insulated electric wood treatment are comes with the factory

The warranty has the warranty is two years
The equipment has its own fault alarm and clear the fault according to the prompt
The control device uses a 5-axis high-speed PLC programmer, and a 3-axis stepping motor



Application Battery Welding Machine or PCB and battery pack welding
Air pressure 0.4-0.8Mpa,No water, no impurities
Y-axis Travel 200-300mm
X-axis Travel 200-450mm
power AC380 50/60hz 4kw
Welding power BT-8000A DC spot welding power supply,1 set
User Interface Touch screen
Spot welding data CAD data import/dot matrix data import/ manual input
Control device 7-inch touch screen
spot welding time 2-10ms
Nickel sheet thickness 0.1MM---0.3MM
Run power Servo electric
Welding current Max 10000A
Battery cell range 14430/14500/18500/18650/21700/26650/32650/32700
Productivity About 2000psc/h
Welding pin 1.7mm(can used 1.5 mm, 2mm and 4mm depending on the battery)
Dimensions L900*W900*H1630MM
Weight About 180kg



Advantage Of Battery Spot Welding Machine

1. Welding stroke can be customized

2. Suitable for various kinds of battery pack

3. High speed welding

4. 7-inch touch screen, more convenient operation, clearer display

5. Welding head has air-cooling or water-cooling function, which can effectively reduce the influence of spot welding needle temperature on welding quality.

6. Can store up to 999 groups of files, the file issimple to call,

does not require complicated line changing process

7. One-key calibration function for total shift of solder joints, which can be calibrated for spot shift caused by changing the solder pin or other reasons

8. Electric or pneumatic spot welding machine is optional




          2020_06_27_18_36_IMG_7199.jpgc24d899.jpg                     3.png                       -9.jpg





 18000A Lithium Spot Welder , Single Side Spot Welding Machine 8




A: How can i install and operate the machine by myself?

B: Our system R&D based on intearated development viewwhen you get the machine, just need to connect it with the electrical power, then machine can be working. because the English software were installed in thismachine.what you need to do is only learning the software usage,and the complete English user manual will be coning to you with the machine.

A: How to order?

BPlease send us your purchase order by email or call us salesor we can make the proforma invoice under your request.We need to know the following information for your order before sending your PI.

A: What's the warranty for the items?

B: We are very confident in our productsand we pack them very well, so usually you will receive your order in good condition.any quality issue,we will deal with it immediately.Warranty for equipment is a year (24months) if the equipment parts are damageddue to non human factors within one year, we will provide replacement parts free of charge.
