|Place of Origin:||China|
Payment & Shipping Terms:
|Minimum Order Quantity:||1|
|Delivery Time:||90 work days|
|Cell Type:||Li-Ion Prismatic Cells||Production Capacity:||High|
|Production Efficiency:||600pcs/h||Production Line Configuration:||Customizable|
|Production Line Delivery Time:||90 Days||Production Line Length:||Customizable|
|Production Line Warranty:||2 Years||Production Line Width:||Customizable|
|Power:||380V±10%，30KW 50HZ||Air Pressure:||0.4-0.8Mpa|
|Application:||EV Battery/Car Battery/Solar Battery Production|

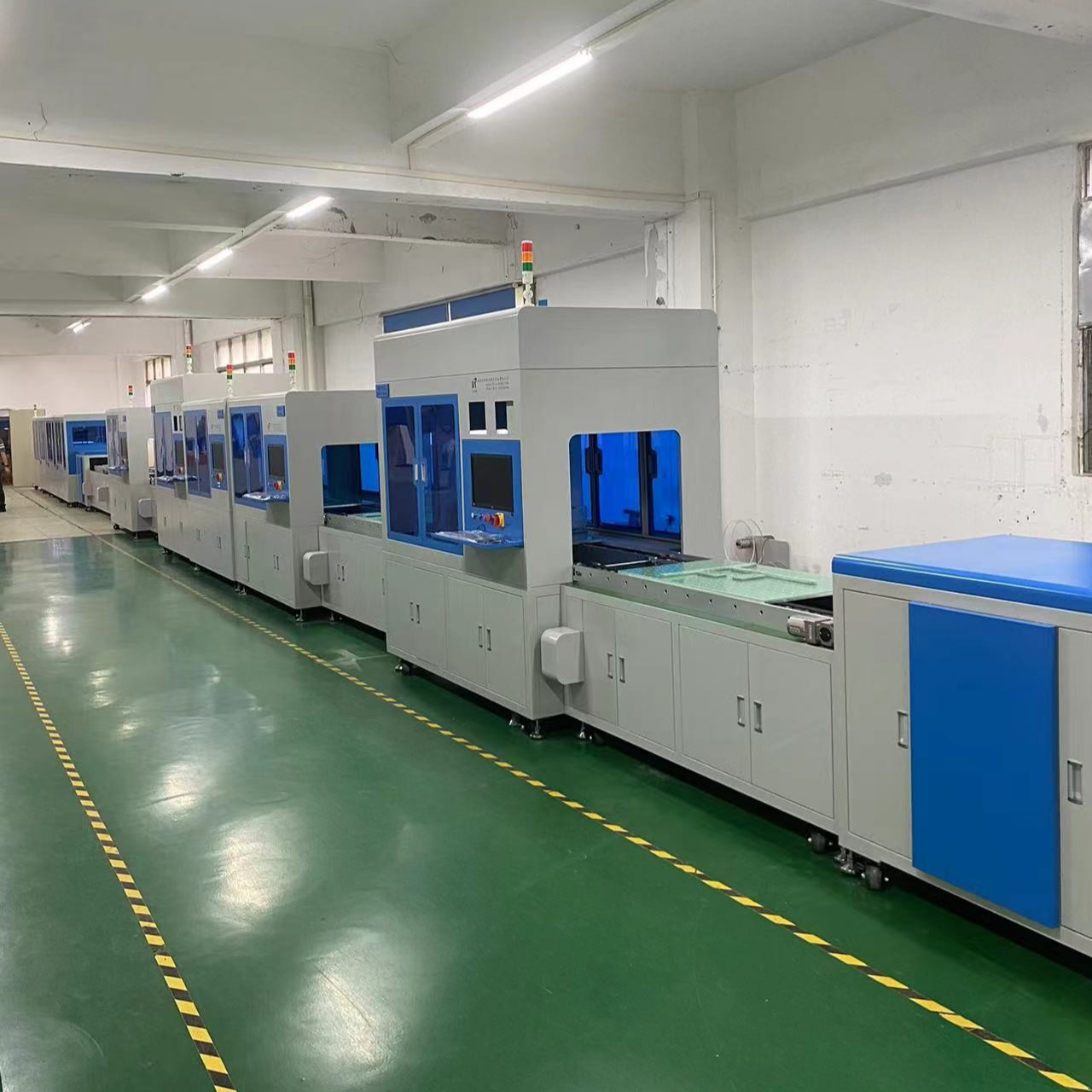

Automatic Prismatic Battery Pack Production Line for EV battery/Electric Car battery
I. Application scope and function description of the equipment
1 Equipment suitable cell type:prismatic cell
2 Equipment suitable cell size: L60-290MM,W20-82MM,H100-280MM
3 Main functions of the equipment: It is used for prismatic cell battery PACK automation pack equipment, mainly used for automobile battery modules. Power battery module. Energy storage battery module.
4 Main components of Automatic Prismatic Battery Pack Production Line for EV battery/electric car battery (production process) :
5 4000W laser is configured as standard. Other power is optional.
6 Laser welding maximum stroke: X axis direction 800MM, Y axis direction 500MM.
7 Comprehensive production efficiency:400-600PCS/H depending on the size of cells
8 Product qualified rate: >99. 5%
9 Equipment operation rate: 98%
II. Schematic diagram of automatic production line for BT-FX11-10 Automatic Prismatic Battery Pack Production Line for EV battery/electric car battery
Ⅲ. Device Environment Requirements
1 Power supply: AC three-phase 380V±10%, 30KW 50HZ
2 Air source: 0.4-0.8Mpa, no water mist, no impurities
3 Ambient temperature: 10-45℃
4 Ambient humidity: not more than 85R.H (no moisture condensation)
5 Environmental requirements: No strong vibration, no strong electromagnetic interference, no corrosive gas, flammable and explosive gas
Ⅳ Quality assurance
The shelf life of the equipment shall be no less than 12 months from the date of acceptance of the equipment, human factors.
Natural disasters, except force majeure and wearing parts.Automatic Prismatic Battery Pack Production Line for EV battery/electric car battery.
A:How do I confirm that you are the manufacturer?
B:1 Clear front desk photo with our factory name.
2 Video calls during working hours, no advance booking is required.
3 Any time agent visit factory,no advance booking is required.
4 Inquire production progress at any time, provide photos and videos, etc.
5 Professional engineers solving after sale service problems.
A:What types of machines can we make?
B:All kinds of battery assembly machines.Cell testing,insulation paper sticking,sorting,welding,testing,aging.
For cylindrical/prismatic/polymer cells,manual and automatic,single machine and production line.
A:Can you help me to set up a plant?
B:Yes,please provide your raw materials and products details,your requirements about efficiency,your budget,we will send a plan to you.If you need we can also introduce some suppliers of raw materials to you.
A:What if the machine parameters you showed are different from what I need?
B:Please send your requirement details to us.As a manufacturer,most of our machines are customized.We’re sure that we can fix your requirements.
A:Do you support after sales service?
B:Yes, after purchase we will have professionals to install and train, and the warranty is two years. Exported to Europe and the United States, Southeast Asian countries, there is a site in India.Automatic Prismatic Battery Pack Production Line for EV battery/electric car battery
