14430 14500 Battery Labeling Machine Battery Pasting Machine 180kg

Product Details:
Place of Origin: China
Brand Name: BT
Certification: ISO9001
Model Number: BT-450
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: USD 7500-9000 Set
Packaging Details: Wooden case
Delivery Time: 15 work days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 30 set month
  • Detail Information
  • Product Description

Detail Information

Application: Sticking Of Insulating Paper For Cylindrical Battery Cell Power: AC220V 50/60HZ 1.6KW
Air Pressure: 0.4-0.8mpa Battery Cell Range: 14430/14500/18500/18650/21700/26650/26700/32650/32700
Insulating Paper Thickness: 0.1mm-0.3mm Insulating Paper Width: Inner Diameter 75mm,outer Diameter 350mm
Efficiency: 4500-5000PCS/H Dimensions: L1420MM*W950MM*H1620MM
Weight: About 180kg Warranty: 2 Years
High Light:

Battery Labeling Machine 180kg

,

14430 Battery Labeling Machine

,

14500 Battery Pasting Machine

Product Description

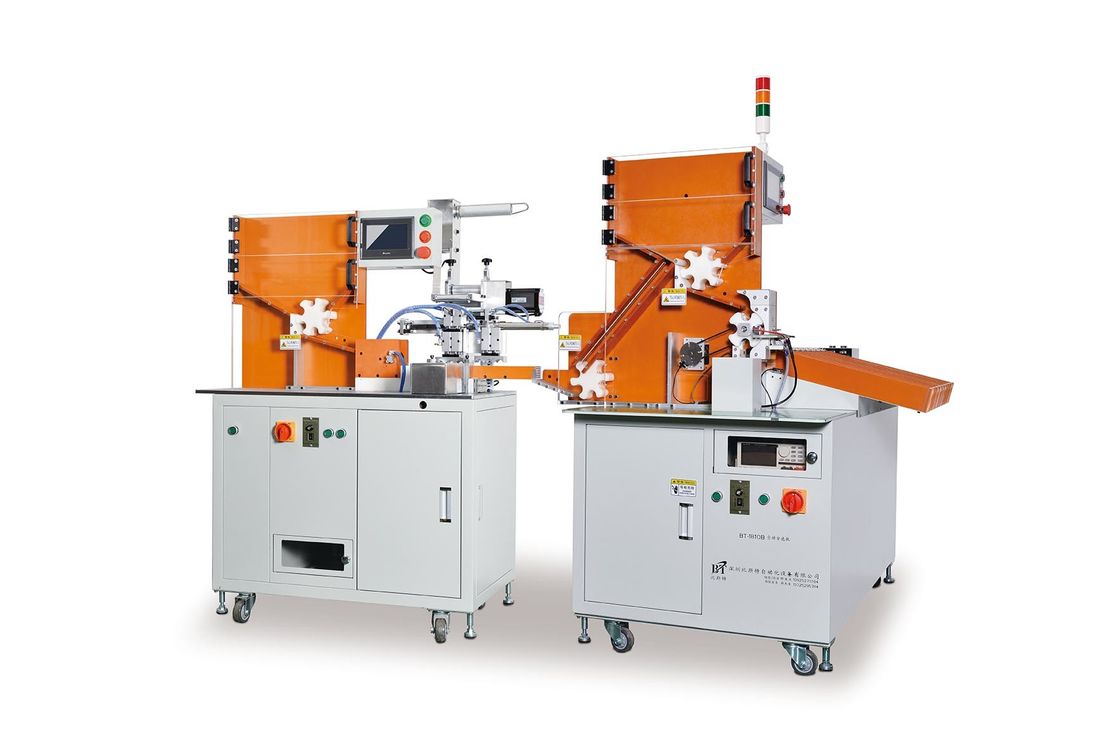

BT-450 Cylindrical cell Insulation Paper Pasting Machine for battery making macchine

Main function:

Cylindrical core positive or negative pole with insulation highland barley paper



BT-450

Product Description

Product characteristics:

The insulating highland barley paper uses the roll material, reduces the waste, saves

the cost

The double manipulator takes and puts the battery, guarantees the battery to transfer

freely from the channel normally

Equipment debugging is simple, easy to learn, fixed parameters, with manual operation

and one-step operation and automatic operation procedures

Equipment with fault alarm, according to the prompt to clear the fault14430 14500 Battery Labeling Machine Battery Pasting Machine 180kg 1

Power AC220V 50/60HZ 1.6KW
Air pressure 0.4-0.8mpa,air source must used when there is a filter devive to ensure that the flow of water-free impurities
battery cell range 14430/14500/18500/18650/21700/26650/26700/32650/32700
Insulating paper width

100mm plus or minus 1mm,inner diameter of coil 75mm,

out diameter of coil 350mm

Insulating paper thickness 0.1-0.3mm
Efficiency 4500-5000pcs/h
Pad power 400W variable frequency motor debugging, set with buffer power to ensure that no damage to the core
Control Devices 7.5-inch touch screen, 2-axis stepper motor design, 42-point PLC programmer
Size L1420MM*W950MM*H1620MM
Weight About 180KG


FAQ

A:How long is the guarantee period of the machine?

B:Our machines are guaranteed for two years, during which the company will repair them free of charge if there is any problem.

A:Do you support after sales service?

B:Yes, after purchase we will have professionals to install and train, and the warranty is two years. Exported to Europe and the United States, Southeast Asian countries, there is a site in India

A:What scope does the product apply to?

B:Company 12 years committed to column Battery Pack Automation Production Equipment, and column Battery

Pack Automation Production Line. Products are mainly used in digital batteries, energy storage batteries, tool batteries, power batteries, automotive batteries, etc.
