Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | BT |
| Certification: | ISO9001 |
| Model Number: | BT-70V5C10F |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 1 |
| Price: | USD 5600-7000 Set |
| Packaging Details: | Wooden case |
| Delivery Time: | 15 work days |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 50 set month |
|
Detail Information |
|||
| Produce Name: | Battery Pack Aging Machine | Input Power: | AC380 4.2KW 50/60HZ |
|---|---|---|---|
| Voltage Range: | 0-70V | Voltage Accuracy: | ±（0.2% Of Reading + 0.2% Of Range） |
| Capacity Accuracy: | ± 1% | Discharge Power: | ≦800W |
| Inspection Time: | <2S(Receive Real-time & LT; 2s) | Timing Range: | 0-999 Hours/Step |
| High Light: | 4.2KW Battery Charge Discharge Tester,60HZ Battery Charge Discharge Tester,4.2KW Battery Impedance Tester |
||
Product Description

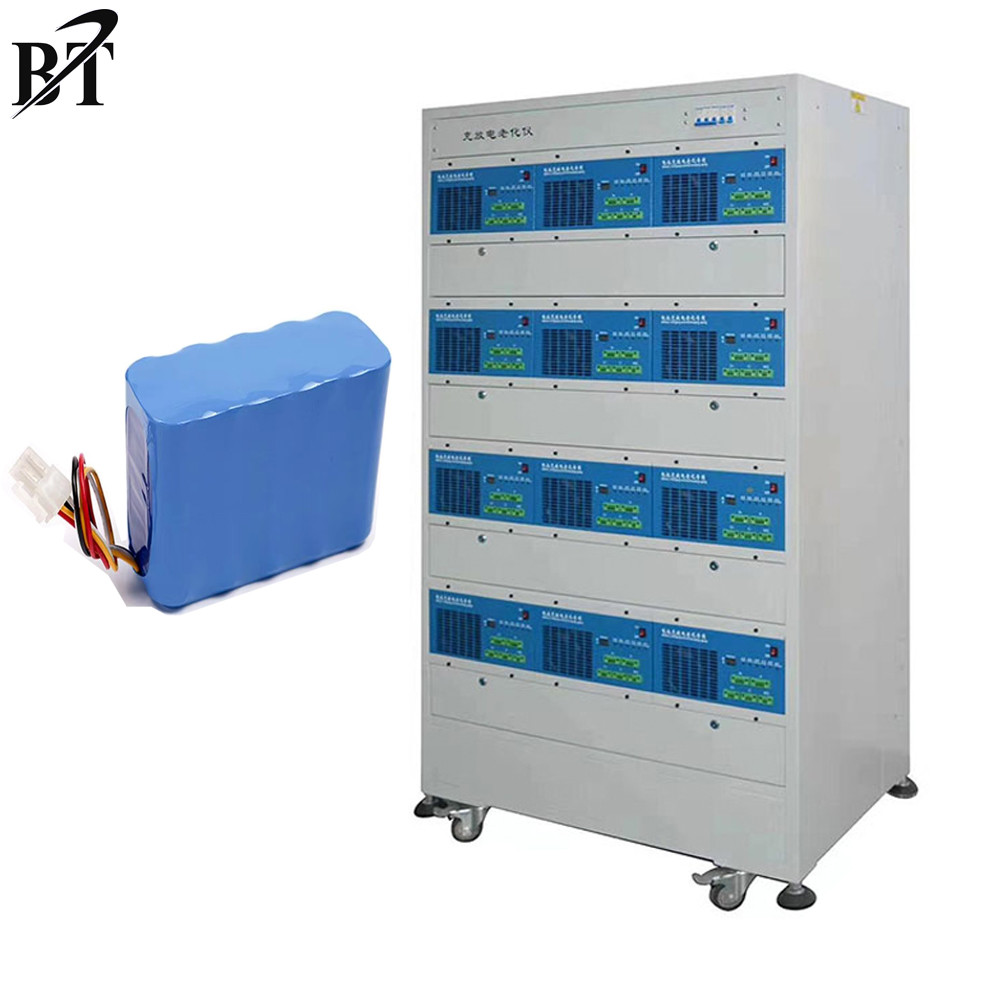

Discharging Charging Battery Impedance Tester For Solar Energy Storage Systems
Introduction:
The equipment has charging, discharging, shelving, and cycling four testing steps. The battery can be tested
according to the set process by editing the corresponding steps.
Testing items include: battery charging protection voltage, discharging protection voltage, capacity, etc.
Product characteristics:
♦ The instrument number is displayed through the LED lamp, and the corresponding instrument number location can be checked at any time
♦ The instrument provides P + and P-interfaces, and CH + and CH-, can test special finished batteries
♦ The battery is mainly in the test range, you can charge and discharge the battery
♦ With PC software, USB concentrator and router
♦ The 32-bit ARM chip selected for the aging system has a reaction speed block with high measuring voltage and current accuracy
♦ Pass the data via the PS232 or via the network
| Input Power | AC 380V ±10% 4.2kw 60/ 50Hz | |
| Voltage | Measuring range | 0~70V |
| Precision | ±(0.2% of reading + 0.2% of range) | |
| Electric Current | Charging range | 0~5000mA |
| Charging accuracy | ±(0.2% of reading + 0.2% of range) | |
| Discharge range | 0~10000mA | |
| Precision | ±(0.2% of reading + 0.2% of range) | |
| Charging | Constant voltage cut-off current | (minimum)10mA |
| Capacity | Precision | ±1‰ |
| Power | Discharge power | ≤800W |
| Time | Inspection time | <2S(Receive real-time & LT; 2s) |
| Timing range | 0 ~ 999 hours / Step | |
| Data recording interval | ≥5S | |
| Median version | 1.1 series | |
| Charging | Charging mode | Constant current and constant voltage charging |
| Cut-off condition | Voltage, current, relative time, overcharge protection | |
| Discharge | Discharge mode | Constant current discharge |
| Cut-off condition | Voltage, relative time, over-discharge protection | |
| Circulates | Cyclic range | 1~999 |
| Single cycle number of steps | 100 | |
| Voltage and current detection sampling | Four wire connection | |
| Noise | <50dB | |
| Database | Using My SQL database to manage test data | |
| Communication Mode of upper computer | Based on TCP / IP Protocol, serial port | |
| Data output mode | EXCEL,TXT,Chart | |
| Communication interface | Mesh opening | |
| Number of channels per cabinet | 12 | |
| Case size | W*D*H:450MM*300MM*170MM | |
| Cabinet size | W*D*H:900MM*600MM*1900MM | |
FAQ
A:How long is the guarantee period of the machine?
B:Our machines are guaranteed for two years, during which the company will repair them free of charge if
there is any problem.
A:Do you support after sales service?
B:Yes, after purchase we will have professionals to install and train, and the warranty is two years. Exported to
Europe and the United States, Southeast Asian countries, there is a site in India
A:What scope does the product apply to?
B:Company 12 years committed to column Battery Pack Automation Production Equipment, and column Battery
Pack Automation Production Line. Products are mainly used in digital batteries, energy storage batteries, tool
batteries, power batteries, automotive batteries, etc.
