Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | BT |
| Certification: | ISO9001 |
| Model Number: | BT-100V10C20F |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 1 |
| Price: | USD 5600-7000 Set |
| Packaging Details: | Wooden case |
| Delivery Time: | 15 work days |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 50 set month |
|
Detail Information |
|||
| Produce Name: | Battery Pack Aging Machine | Input Power: | AC380 7KW 50/60HZ |
|---|---|---|---|
| Voltage Range: | 0-100V | Voltage Accuracy: | ±（0.2% Of Reading + 0.2% Of Range） |
| Capacity Accuracy: | ± 1% | Discharge Power: | ≦1400W |
| Inspection Time: | <2S(Receive Real-time & LT; 2s) | Timing Range: | 0-999 Hours/Step |
| High Light: | 7kw Battery Life Cycle Tester,100V Battery Life Cycle Tester,10A battery charging discharging |
||
Product Description

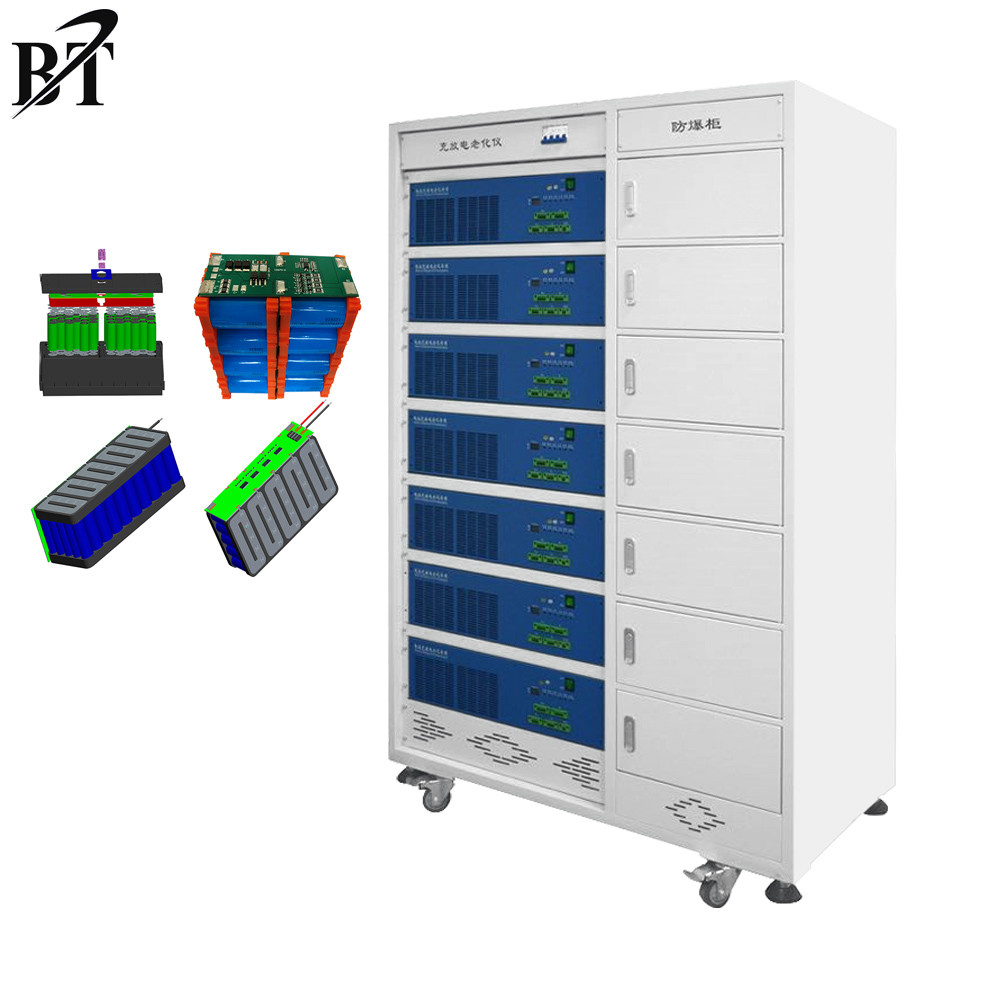

100V 10A Charging 20A Discharging Battery Pack Aging Machine For Lithium Battery Pack
Introduction:
The equipment has charging, discharging, shelving, and cycling four testing steps. The battery can be tested according to the set process by editing the corresponding steps.
Testing items include: battery charging protection voltage, discharging protection voltage, capacity, etc.
Product characteristics:
♦ Network connection mode can be adopted, and the PC computer terminal can control within 254 instruments by only providing one network port
♦ The software system adopts a classic and mature C/S mode
♦ There are two ways: serial port and network
♦ The equipment has a constant current discharge function
♦ Fully meet the requirements of the battery pack charge and discharge outlets and charge and discharge outlets
♦ Colleagues can be aging the positive plate charging protection negative plate discharge protection
| Input Power | AC 380V 7kw 50/60Hz | |
| Voltage | Measuring range | 0~100V |
| Precision | ±(0.2% of reading + 0.2% of range) | |
| Electric Current | Charging range | 0~10A |
| Charging accuracy | ±(0.2% of reading + 0.2% of range) | |
| Discharge range | 0~20A | |
| Precision | ±(0.2% of reading + 0.2% of range) | |
| Charging | Constant voltage cut-off current | (minimum)10mA |
| Capacity | Precision | ±1‰ |
| Power | Discharge power | ≤1400W |
| Time | Inspection time | <2S(Receive real-time & LT; 2s) |
| Timing range | 0 ~ 999 hours / Step | |
| Data recording interval | ≥5S | |
| Median version | 1.1 series | |
| Charging | Charging mode | Constant current and constant voltage charging |
| Cut-off condition | Voltage, current, relative time, overcharge protection | |
| Discharge | Discharge mode | Constant current discharge |
| Cut-off condition | Voltage, relative time, over-discharge protection | |
| Circulates | Cyclic range | 1~999 |
| Single cycle number of steps | 100 | |
| Voltage and current detection sampling | Four wire connection | |
| Noise | <50dB | |
| Database | Using My SQL database to manage test data | |
| Communication Mode of upper computer | Based on TCP / IP Protocol, serial port | |
| Data output mode | EXCEL,TXT,Chart | |
| Communication interface | Mesh opening | |
| Number of channels per cabinet | 7 | |
| Case size | W*D*H:450MM*300MM*170MM | |
| Cabinet size | W*D*H:900MM*600MM*1900MM | |
FAQ
A:How can i install and operate the machine by myself?
B:Our system R&D based on intearated development viewwhen you get the machine, just need to connect it with the electrical power, then machine can be working. because the English software were installed in thismachine.what you need to do is only learning the software usage,and the complete English user manual will be coning to you with the machine.
A:How to order?
B:Please send us your purchase order by email or call us salesor we can make the proforma invoice under your request. We need to know the following information for your order before sending your PI.
A:What's the warranty for the items?
B:We are very confident in our productsand we pack them very well, so usually you will receive your order in good condition. any quality issue,we will deal with it immediately.Warranty for equipment is a year (24months) if the equipment parts are damaged due to non human factors within one year, we will provide replacement parts free of charge.
A:What scope does the product apply to?
B:Company 13 years committed to column Battery Pack Automation Production Equipment, and column Battery Pack Automation Production Line. Products are mainly used in digital batteries, energy storage batteries, tool batteries,power batteries, automotive batteries, etc.
